Installing the USB board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

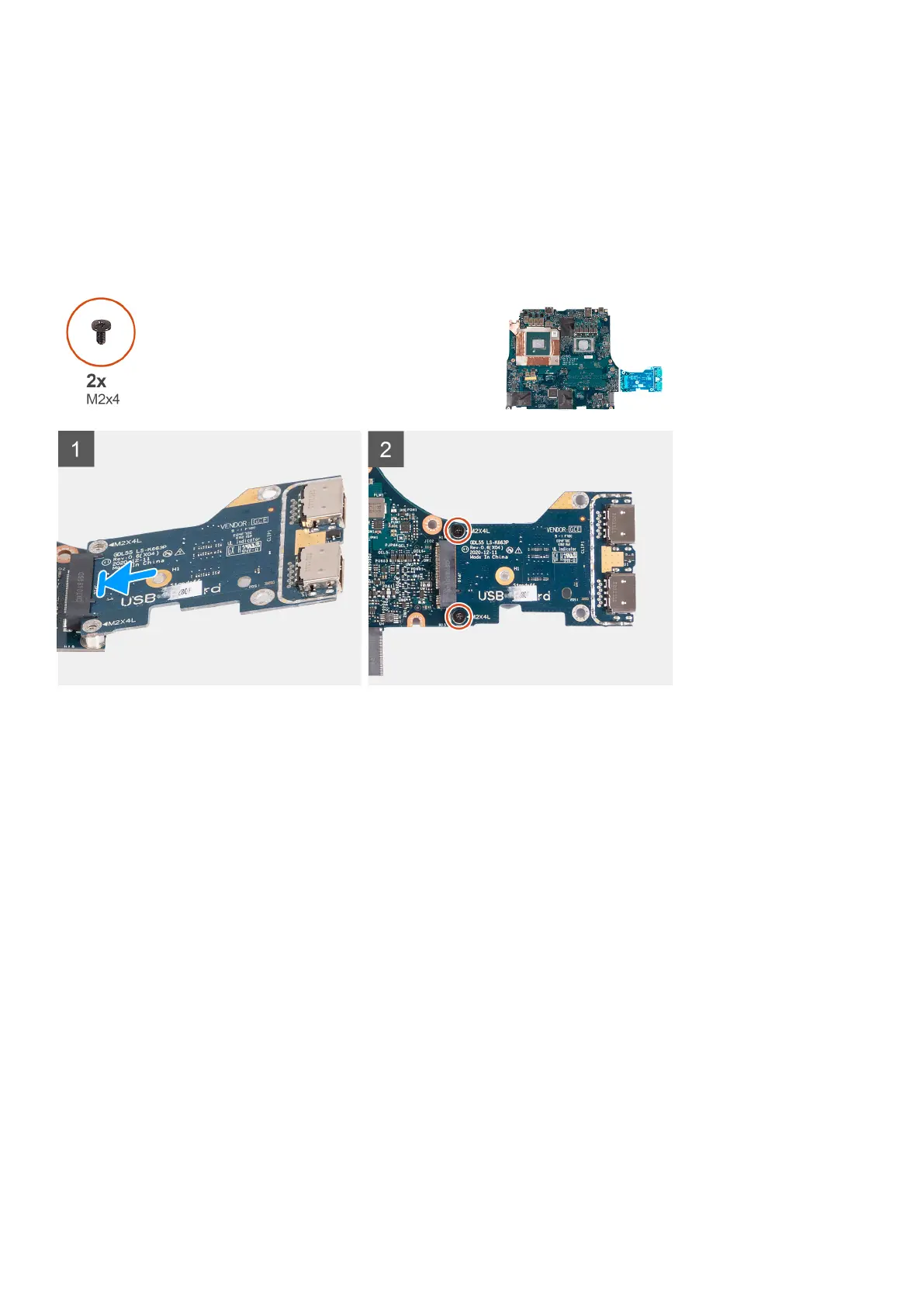

The following image indicates the location of the USB board and provides a visual representation of the installation procedure.
Steps
1. At an angle, insert the USB board in to the system board.
2. Replace the two screws (M2x4) that secure the USB board to the system board.
Next steps
1. Follow the procedure from step 2 to step 20 in Replacing the system board.
2. Install the memory module.
3. Install the wireless card.
4. Install the solid-state drive 2.
5. Install the solid-state drive 1.
6. Install the rear cover
7. Install the battery.
8. Install the base cover.
9. Follow the procedure in After working inside your computer.
Power button
Removing the power button
Prerequisites
1. Follow the procedure in Before working inside your computer.
