Dell Latitude 7210 2-in-1 User Manual

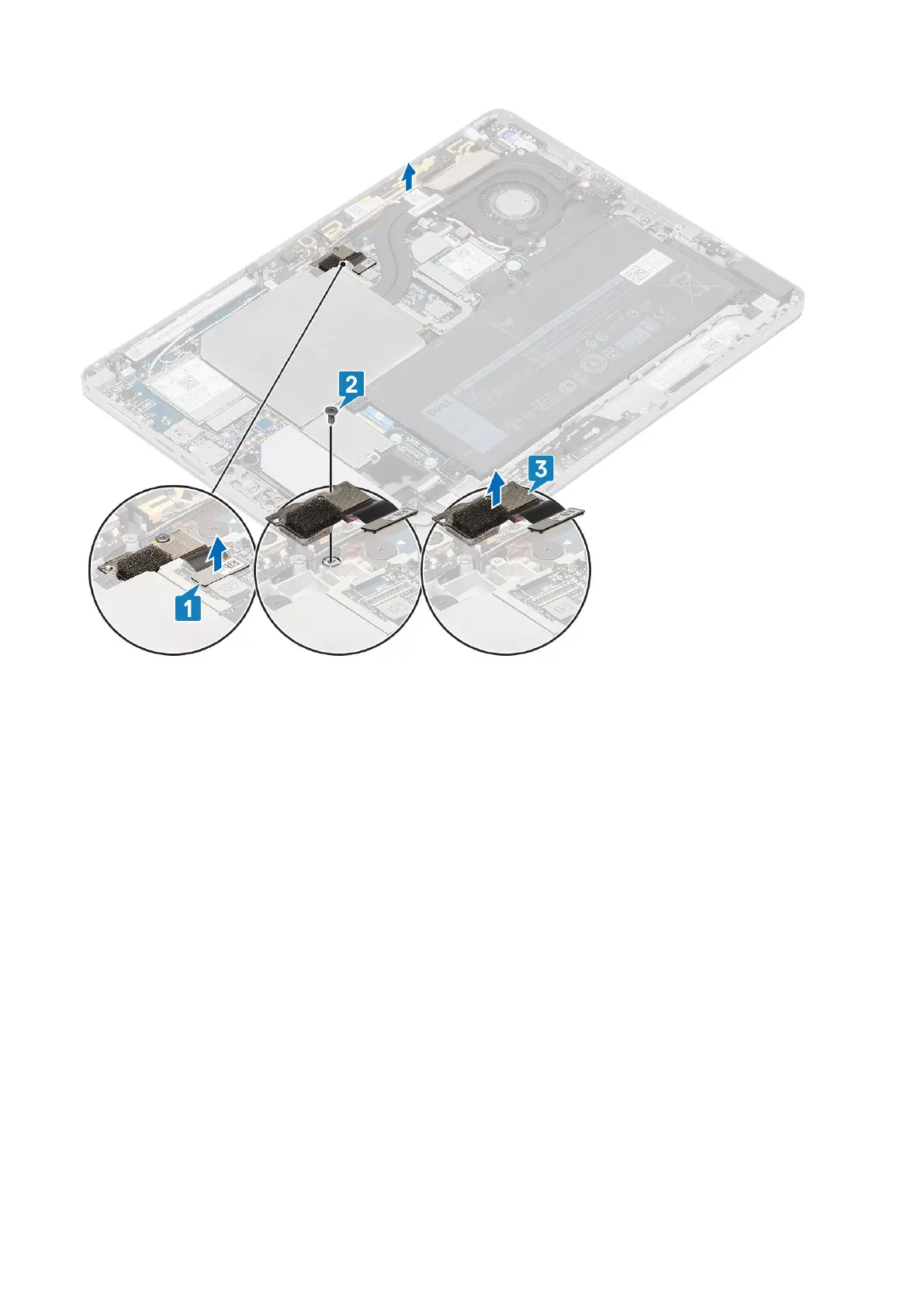

Installing rear camera
Steps
1. To install the rear camera:
a. Align and place the rear-camera module into the slot on the computer [1].
b. Replace the M1.6x3 screw to secure the rear-camera module to the computer [2].
c. Connect the rear-camera cable to the connector on the system board [3].
54
Disassembly and reassembly

Dell Latitude 7210 2-in-1 Specifications

General

Graphics	Intel UHD Graphics
Operating System	Windows 10 Pro
Bluetooth	Bluetooth 5.1
Processor	10th Generation Intel Core i5/i7
Display	12.3-inch FHD+ (1920 x 1280) Touch Display
Memory	Up to 16GB LPDDR4x
Storage	Up to 1TB PCIe NVMe SSD
Battery	38 WHr, 2-Cell Battery (integrated)
Ports	1 x microSD card reader, 1 x headphone/microphone combo jack
Wireless	Intel Wi-Fi 6 AX201 2x2 802.11ax
