Dell Latitude 7210 2-in-1 User Manual

3. Install the:
a. display panel assembly
b. SIM card tray
c. microSD card
Display cable
Removing display cable
Steps
1. Follow the procedure in Before working inside your tablet.
2. Remove the:
a. microSD card
b. SIM card tray
c. display panel assembly

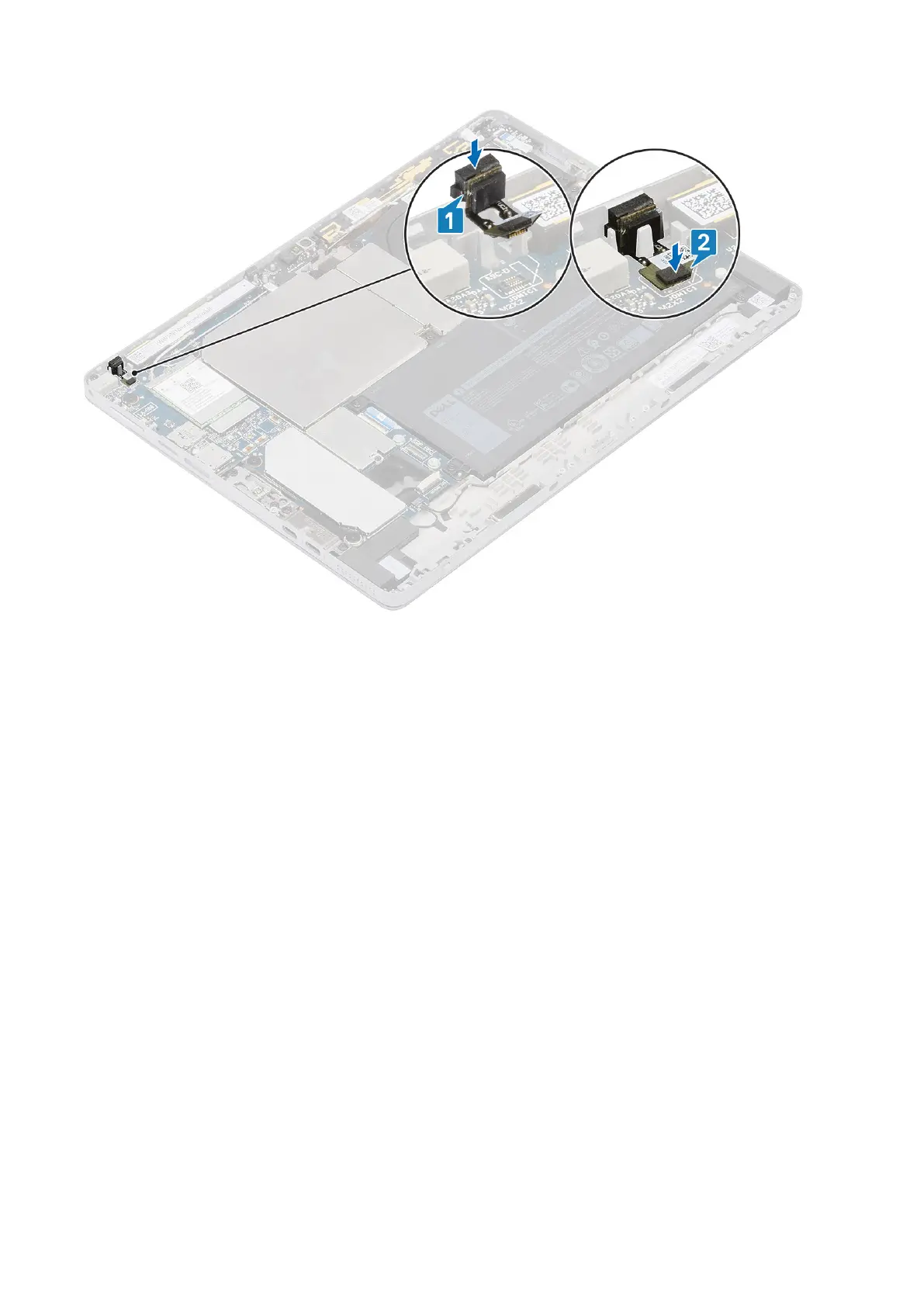

3. Peel back the tape covering the display connector and touch module connector [1].
4. Disconnect and peel the display cable from the touch module [2].
5. Disconnect and remove the display cable from the display panel [2].
NOTE: The connector on the display cable features a cover that must be flipped open in order to disconnect the display
cable from the display panel.
86
Disassembly and reassembly

Dell Latitude 7210 2-in-1 Specifications

General

Graphics	Intel UHD Graphics
Operating System	Windows 10 Pro
Bluetooth	Bluetooth 5.1
Processor	10th Generation Intel Core i5/i7
Display	12.3-inch FHD+ (1920 x 1280) Touch Display
Memory	Up to 16GB LPDDR4x
Storage	Up to 1TB PCIe NVMe SSD
Battery	38 WHr, 2-Cell Battery (integrated)
Ports	1 x microSD card reader, 1 x headphone/microphone combo jack
Wireless	Intel Wi-Fi 6 AX201 2x2 802.11ax
