Dell Latitude E4310 - Bluetooth Card and Cable Service

Back to Contents Page

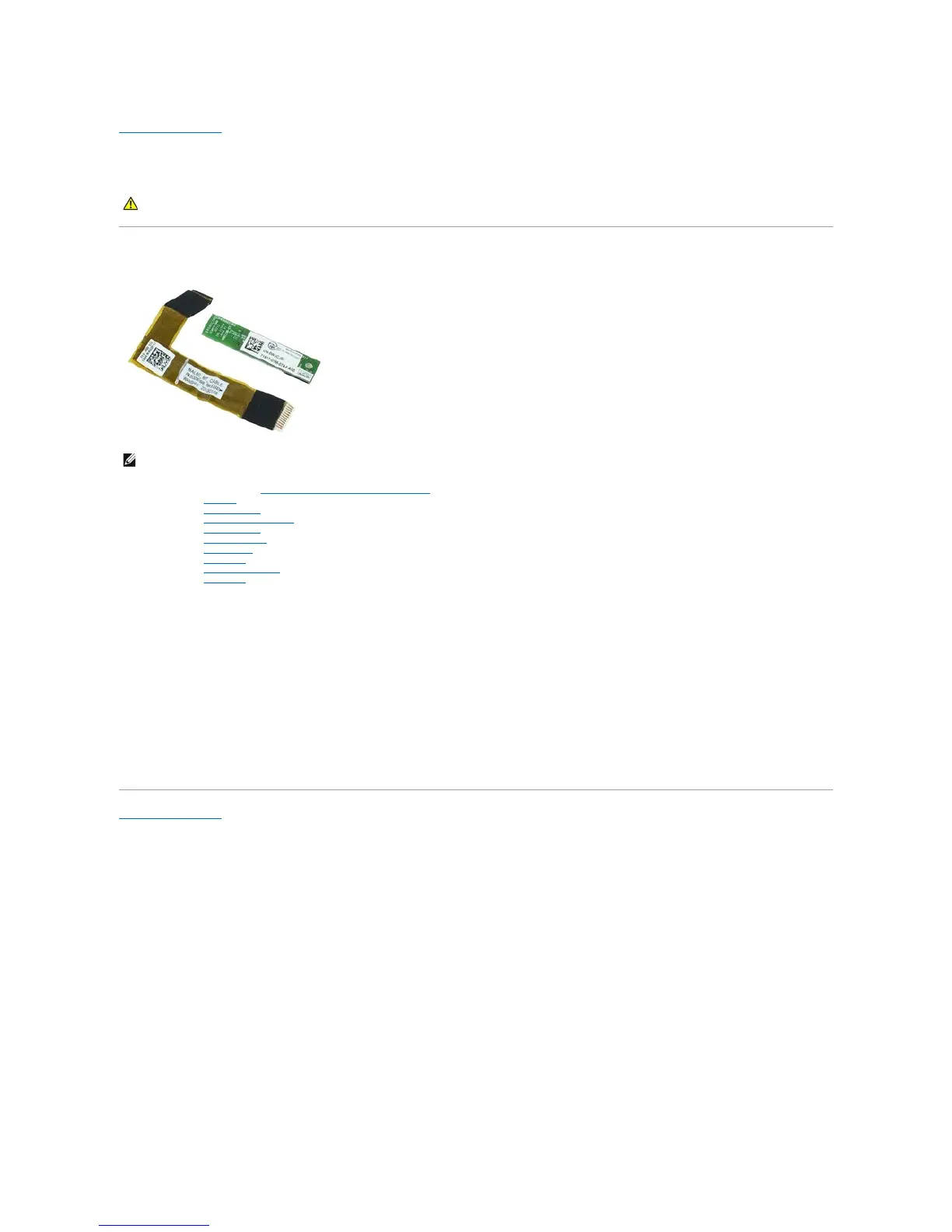

Bluetooth Card and Cable
Dell Latitude E4310 Service Manual
Removing the Bluetooth Card and Cable
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the battery.
3. Remove the ExpressCard.
4. Remove the hard drive assembly.
5. Remove the hinge covers.
6. Remove the mini card door.
7. Remove the LED covers.
8. Remove the keyboard.
9. Remove the display assembly.
10. Remove the palm rest.
11. Remove the screw that secures the Bluetooth card to the palm rest.
12. Disconnect the Bluetooth data cable from the Bluetooth card and remove the Bluetooth card from the computer.
13. GentlyreleasetheBluetoothdatacablefromthepalmrestandremoveitfromthecomputer.
Replacing the Bluetooth Card and Cable
To replace the Bluetooth card and cable, perform the above steps in reverse order.
Back to Contents Page
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTE: You may need to install Adobe Flash Player from Adobe.com in order to view the illustrations below.
