Dell Latitude E4310 - Display Panel Service; Removing and Replacing the Display Panel

Back to Contents Page

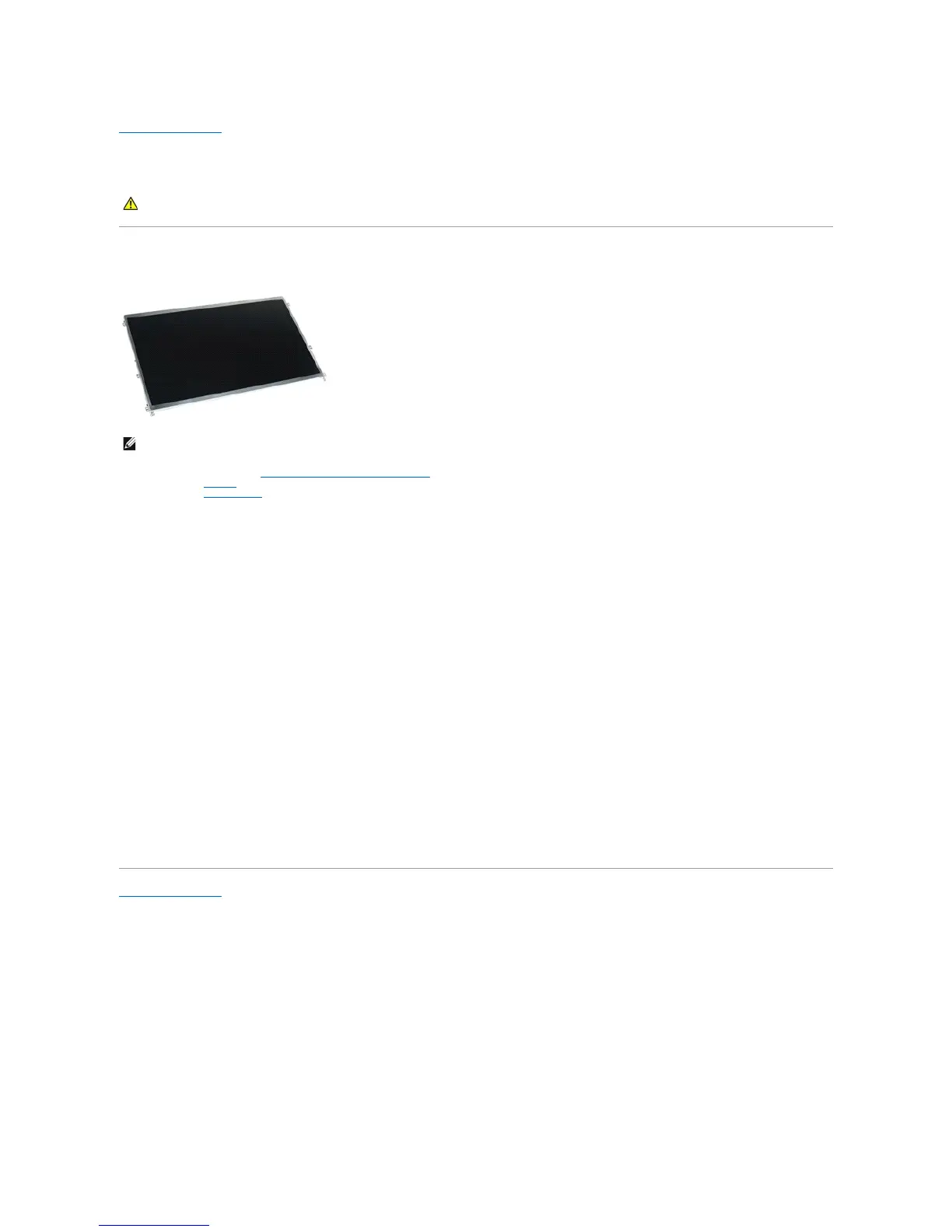

Display Panel
Dell Latitude E4310 Service Manual
Removing the Display Panel
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the battery.
3. Remove the display bezel.
4. Remove the screws that secure the display panel to the computer.
5. Turn over the the display panel and gently place it on the keyboard.
6. ReleasetheMylartabanddisconnectthedisplaycablefromitsconnectoronthedisplaypanel.
7. Remove the display panel from the computer.
8. Remove the screws that secure the left display bracket to the display panel.
9. Remove the screws that secure the right display bracket to the display panel.
10. Remove the brackets from the display panel.
Replacing the Display Panel
To replace the display panel, perform the above steps in reverse order.
Back to Contents Page
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTE: You may need to install Adobe Flash Player from Adobe.com in order to view the illustrations below.
