Dell Networking N4032 Reference Guide

16 Expansion Modules for Dell Networking Switches
4.4 Dell Networking 7000 Series (7024, 7024P, 7024F, 7048, 7048P,
7048R, and 7048R-RA)
There are seven different switch models in the Dell Networking 7000 series, each with two bays for expansion
modules. Depending on the model, the rear view of the switch is one of the three shown in Figure 10. The yellow
outlines show the two bays.

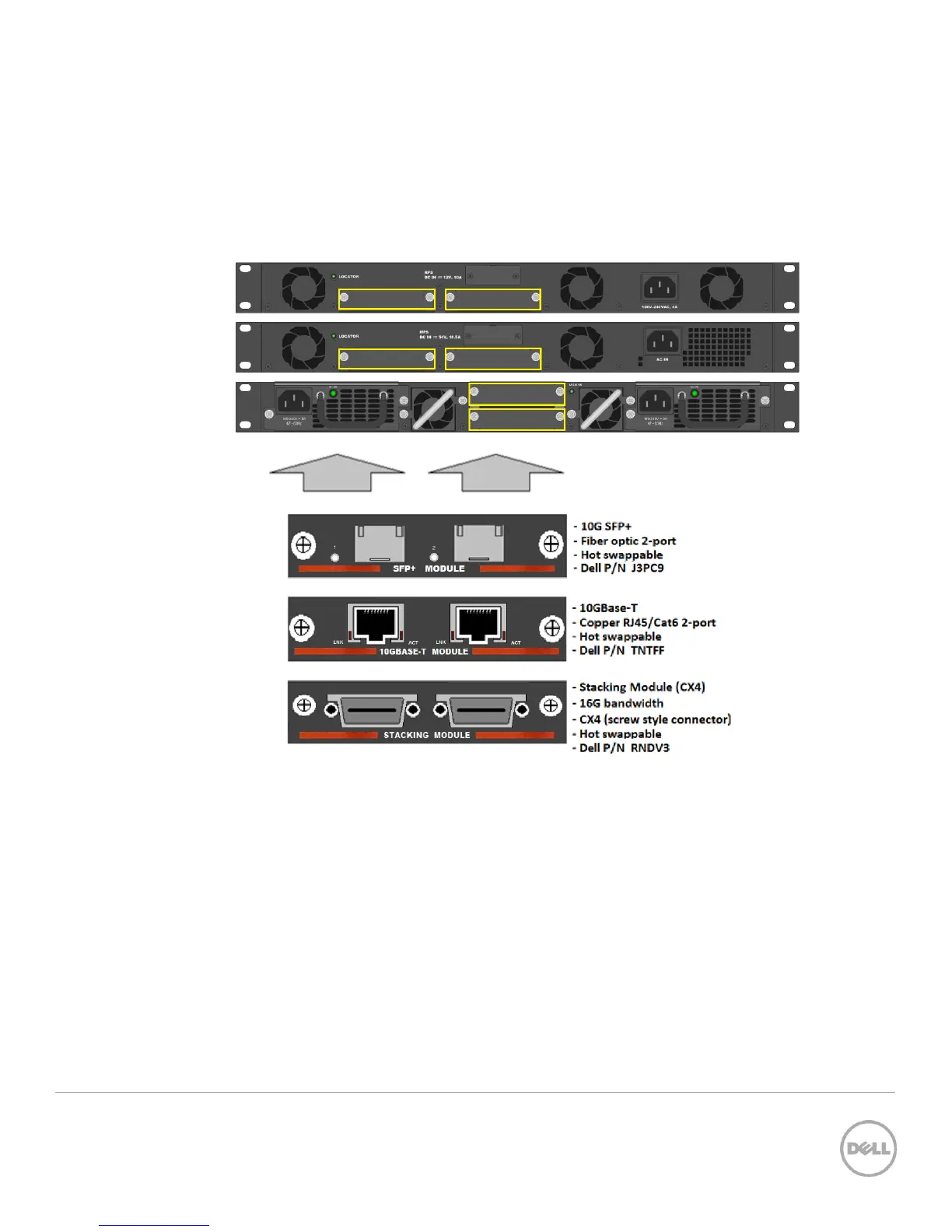

Figure 10 Dell Networking 7000 Series Switch (1G Ethernet) and Available Modules
Red lines on these Dell Networking modules indicate that they are hot-swappable modules. The CX4 Stacking
Module for the 7000 series is not capable of changing roles (to Ethernet) as is true for CX4 modules for the
62xx/M62xx. These stacking modules are only used for stacking.

Dell Networking N4032 Specifications

General

Rack Units	1U
Layer	Layer 3
Manageable	Yes
Stackable	Yes
MAC Address Table Size	32, 000 entries
Jumbo Frame Support	Yes
Jumbo Frame Size	9216 bytes
Input Voltage	100-240 VAC
Operating Temperature	0°C to 45°C (32°F to 113°F)
Uplink Ports	8 x 10 Gigabit Ethernet 10GBASE-T
Power Supply	Dual, hot-swappable
Operating Humidity	10% to 90% non-condensing
