Dell Networking N4032 Reference Guide

9 Expansion Modules for Dell Networking Switches
3.1.1 Dell Networking M8024-k
12
34
CONSOLE
PowerConnect M8024-k
17
18
19
20

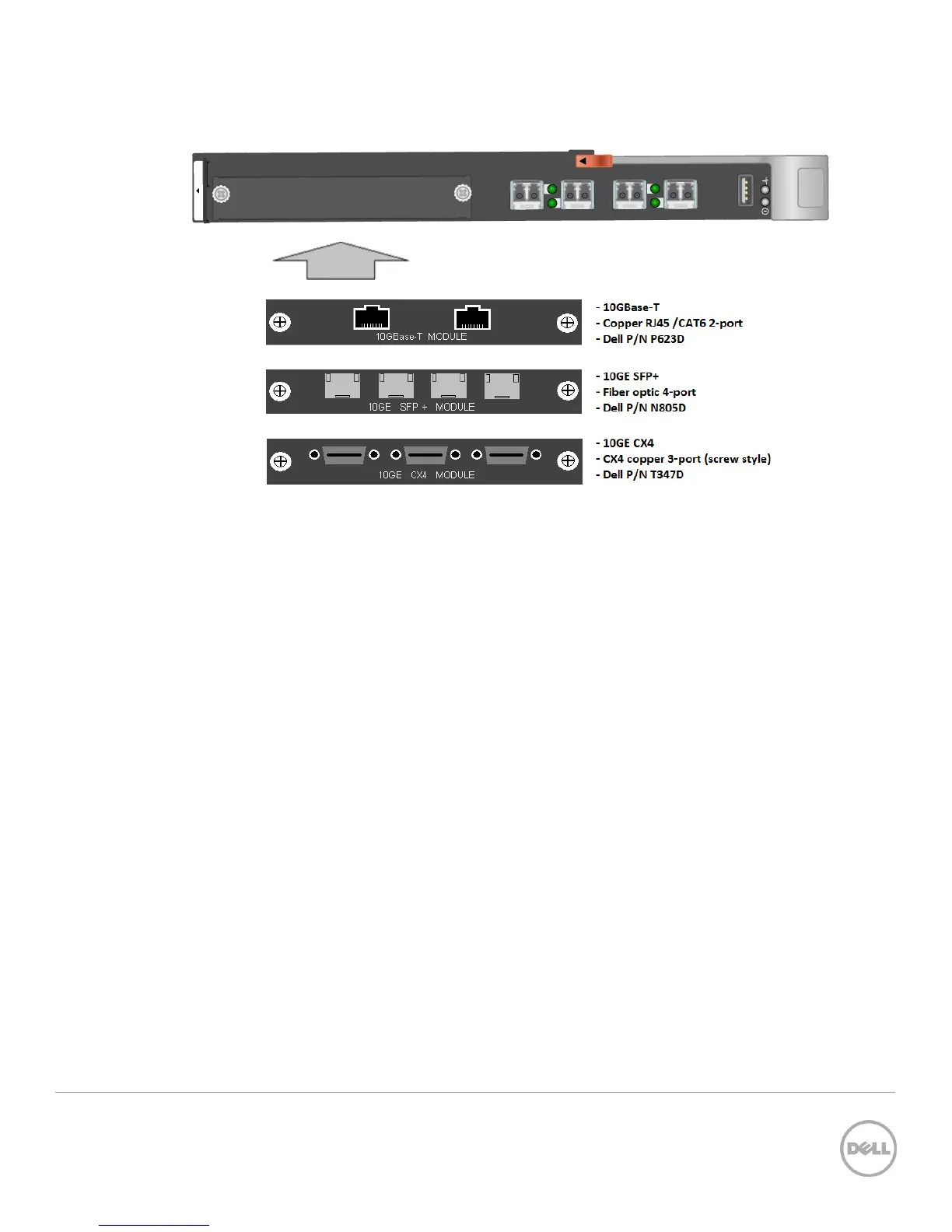

Figure 2 Dell Networking M8024-k Blade Switch (10G Ethernet) and Available Modules
The Dell Networking M8024 and M8024-k switches support the same expansion modules. Fixed SFP+ ports on an
M8024-k can run 10G or 1G optics, but the SFP+ expansion module for the M8024-k can only run 10G optics. This
limitation only applies to the M8024-k SFP+ expansion module and is not prevalent for other devices or modules
(including the M8024).

Dell Networking N4032 Specifications

General

Rack Units	1U
Layer	Layer 3
Manageable	Yes
Stackable	Yes
MAC Address Table Size	32, 000 entries
Jumbo Frame Support	Yes
Jumbo Frame Size	9216 bytes
Input Voltage	100-240 VAC
Operating Temperature	0°C to 45°C (32°F to 113°F)
Uplink Ports	8 x 10 Gigabit Ethernet 10GBASE-T
Power Supply	Dual, hot-swappable
Operating Humidity	10% to 90% non-condensing
