Dell Networking N4032 User Manual

28 Stacking Dell Networking Switches: N4032, N4032F, N4064, N4064F

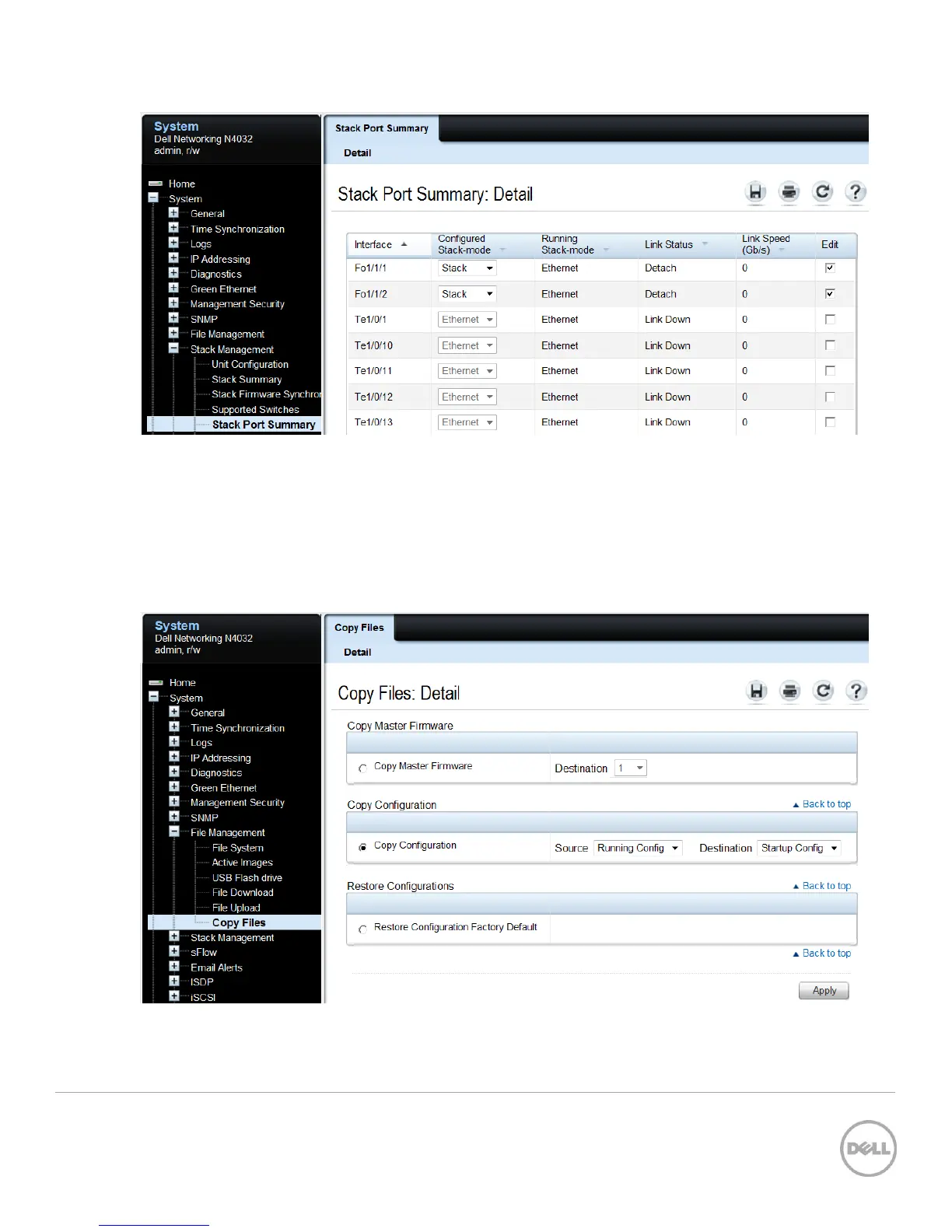

In the Edit column, select the check box to allow editing on the ports to be used for stacking. Then use
the drop-down menu in the Configured Stack-mode column to put each port in stack mode. The
Configured Stack Mode is now Stack , but the Running Stack-mode does not show Stack until the switch is
reloaded, as instructed below.
Save the configuration to the Startup-Configuration using the System > File Management > Copy Files
page.
After saving the configuration, remove power from the switch.

Dell Networking N4032 Specifications

General

Rack Units	1U
Layer	Layer 3
Manageable	Yes
Stackable	Yes
MAC Address Table Size	32, 000 entries
Jumbo Frame Support	Yes
Jumbo Frame Size	9216 bytes
Input Voltage	100-240 VAC
Operating Temperature	0°C to 45°C (32°F to 113°F)
Uplink Ports	8 x 10 Gigabit Ethernet 10GBASE-T
Power Supply	Dual, hot-swappable
Operating Humidity	10% to 90% non-condensing
