Dell Networking N4032 User Manual

30 Stacking Dell Networking Switches: N4032, N4032F, N4064, N4064F
2.3.2.2 Validation

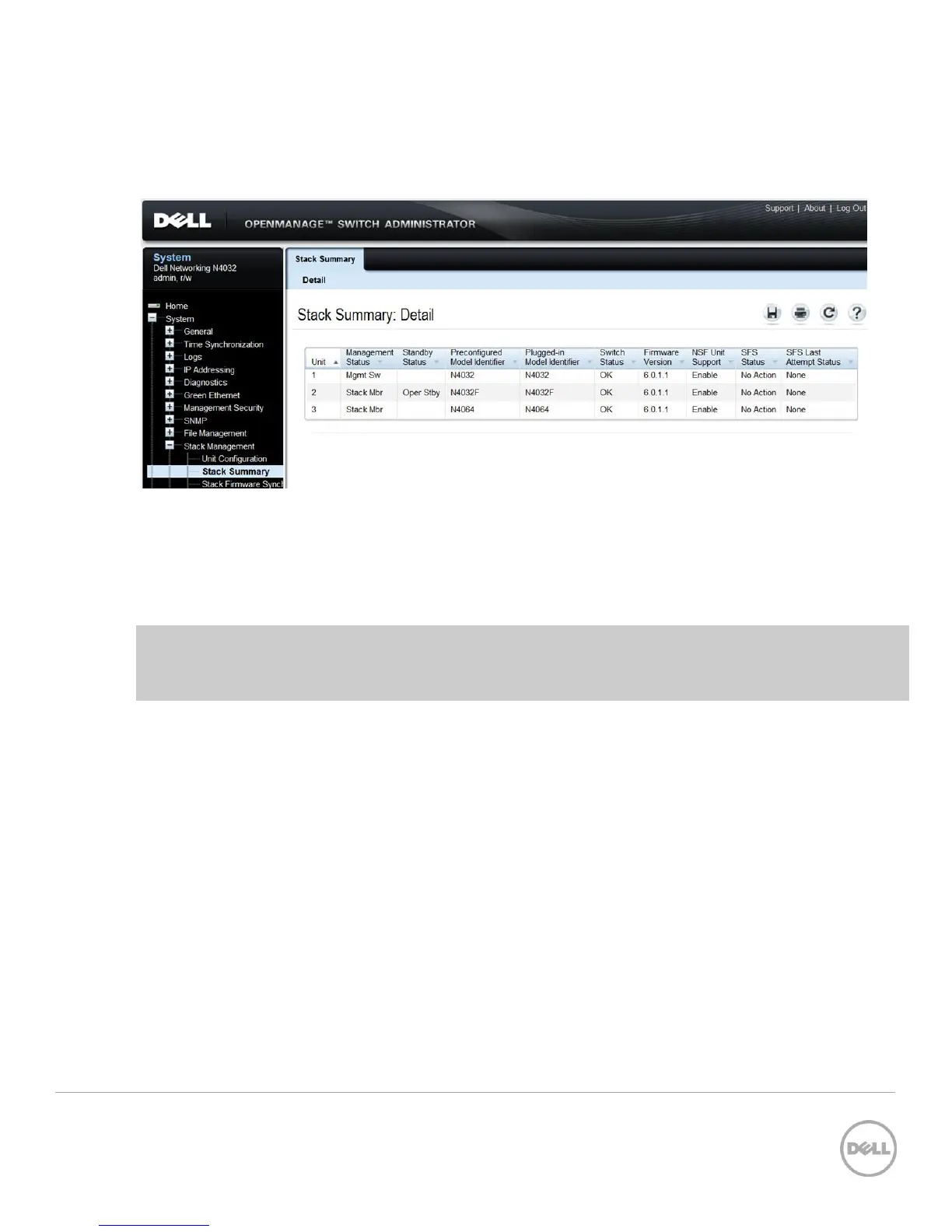

After the entire stack is created, validate the configuration by selecting System > Stack Management >
Stack Summary from the main navigation menu:
The example above shows a new stack member (Unit 3) was added.
If a switch (SW) number is configured prior to adding it to the stack and there are no other devices using
that number, then the switch continues to use the same number. Otherwise, the switch sets its number to
the lowest unassigned number upon joining the stack.
Note: Once added to a stack, a switch’s out-of-band IP address and console port are no longer
accessible to the user. Use the IP address and console port of the Master unit for management access,
since the stack now acts as a single large switch.
Repeat the above steps to add more new members to the stack.

Dell Networking N4032 Specifications

General

Rack Units	1U
Layer	Layer 3
Manageable	Yes
Stackable	Yes
MAC Address Table Size	32, 000 entries
Jumbo Frame Support	Yes
Jumbo Frame Size	9216 bytes
Input Voltage	100-240 VAC
Operating Temperature	0°C to 45°C (32°F to 113°F)
Uplink Ports	8 x 10 Gigabit Ethernet 10GBASE-T
Power Supply	Dual, hot-swappable
Operating Humidity	10% to 90% non-condensing
