b. Power switch

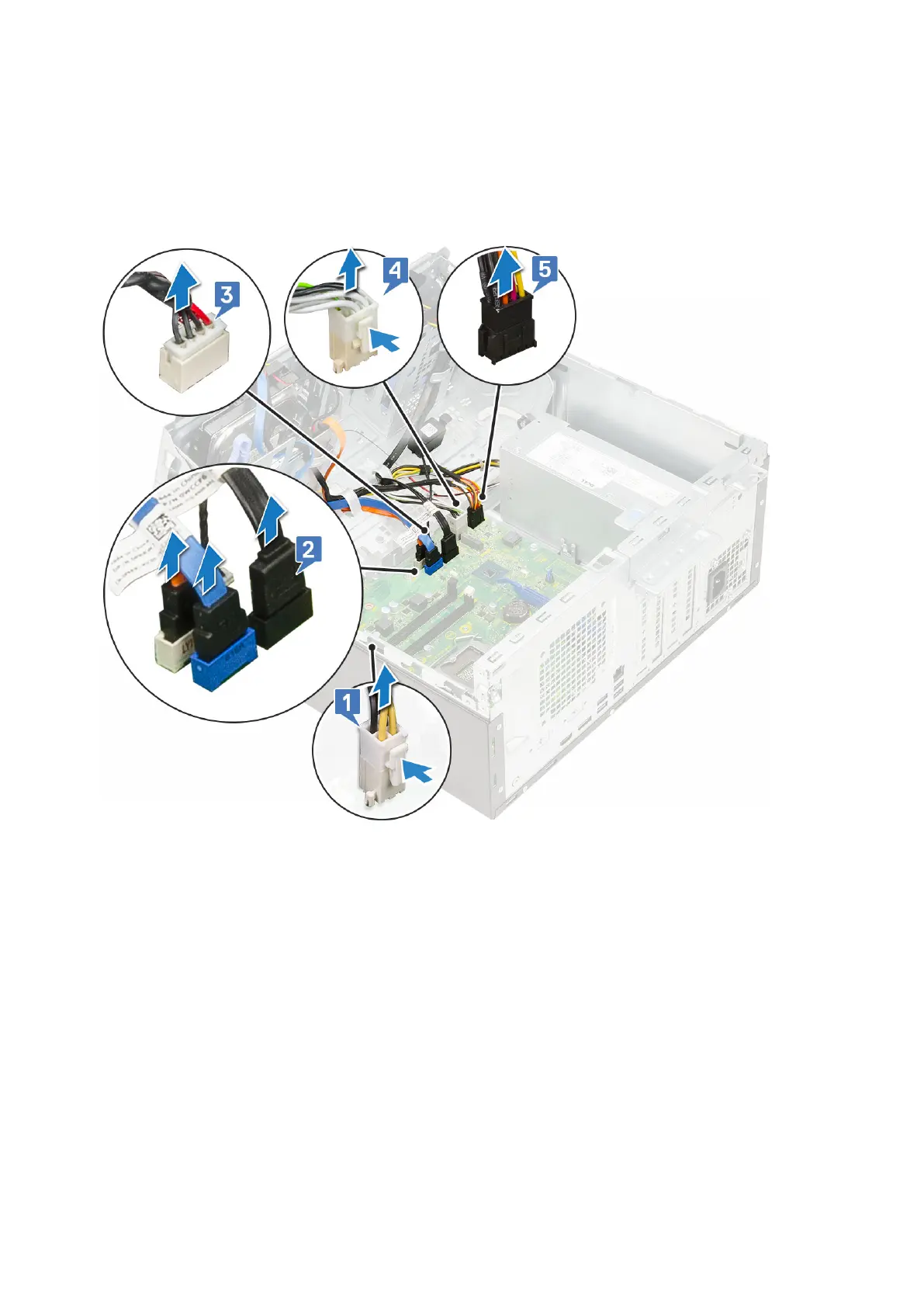

6. Disconnect the following cables from the system board:
a. CPU power [1]
b. Hard drive data and optical drive data [2]
c. Speaker [3]
d. System power [4]
e. SATA [5]
7.
To remove the system board:
a. Remove the screws that secure the system board to the computer [1].
