Removing and installing components
Side cover

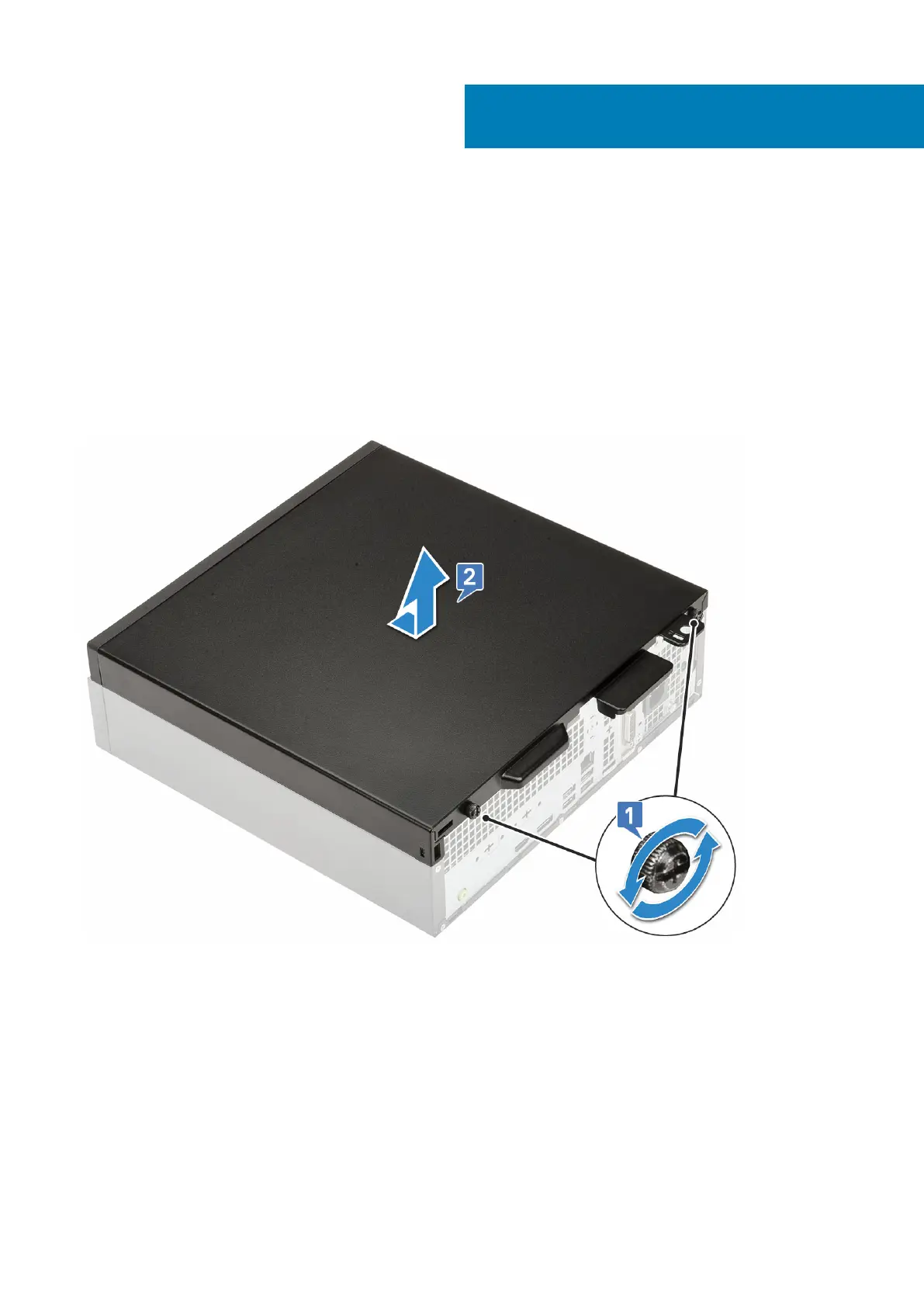

Removing the side cover
1. Follow the procedure in Before working inside your computer.
2. To remove the cover:
a) Loosen the captive screws that secure the cover to the computer [1].
b) Slide and lift the side cover from the system [2].
Installing the side cover
1. Place the cover on the computer, slide it to align it with the chassis and tighten the captive screws to secure the cover to the
computer [1].
4
18 Removing and installing components
