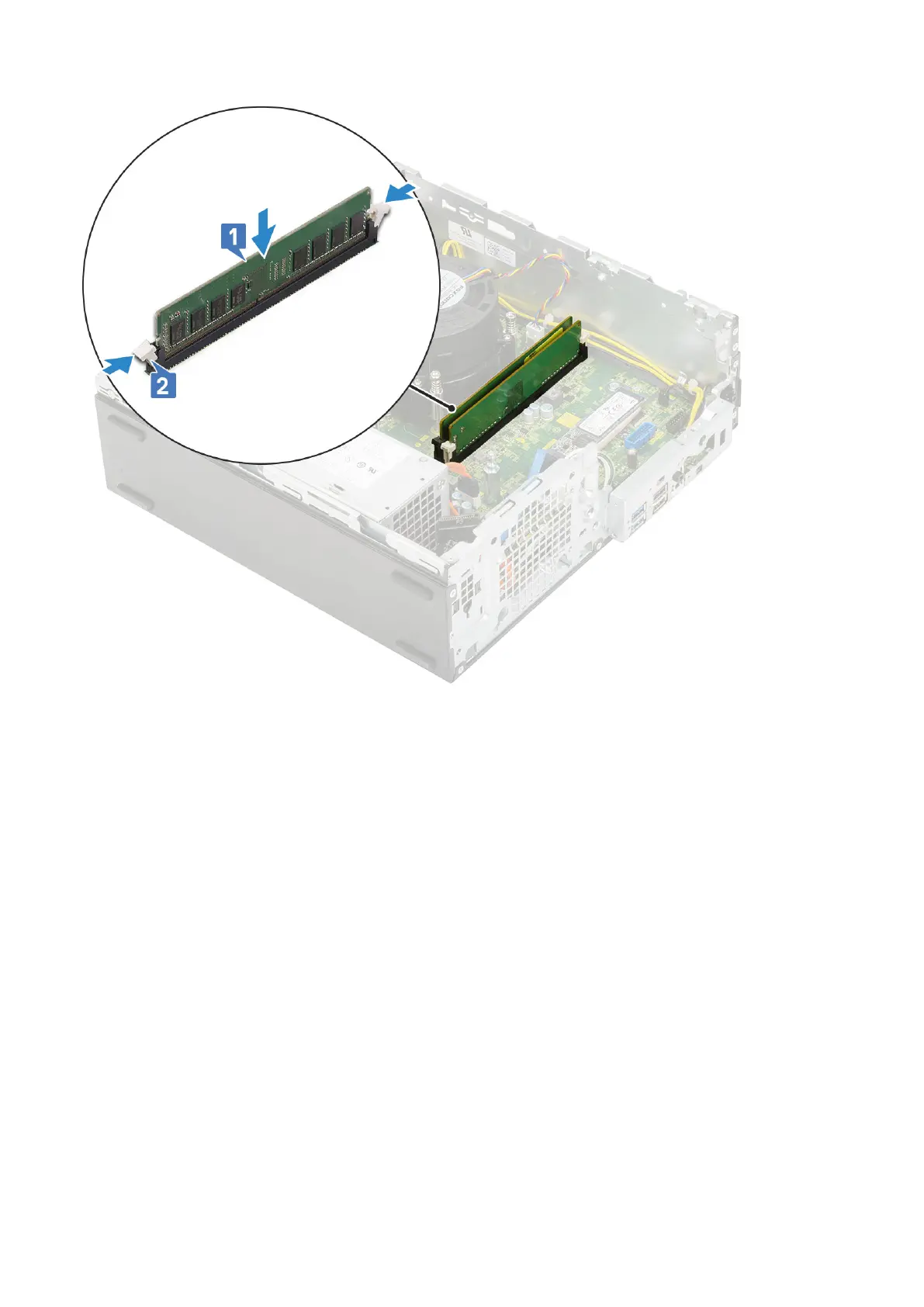

4. Install the:
a) Hard drive and optical drive module
b) HDD assembly
c) Front bezel
d) Side cover
5. Follow the procedure in After working inside your computer.
Heatsink fan
Removing heatsink fan
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a) Side cover
b) Front bezel
c) HDD assembly
d) Hard drive and optical drive module
3. To remove the heatsink fan:
a) Disconnect the heatsink fan cable from the connector on the system board [1].
b) Remove the 3 screws that secure the heat sink fan to the heat sink [2].
c) Lift the heatsink fan away from the computer [3].
Removing and installing components
89
