Dell OptiPlex 3070 Small Form Factor User Manual

Hard drive and optical drive module
Removing the hard drive and optical drive module
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a) Side cover
b) Front bezel
c) HDD assembly
3. To release the hard drive and optical drive module:

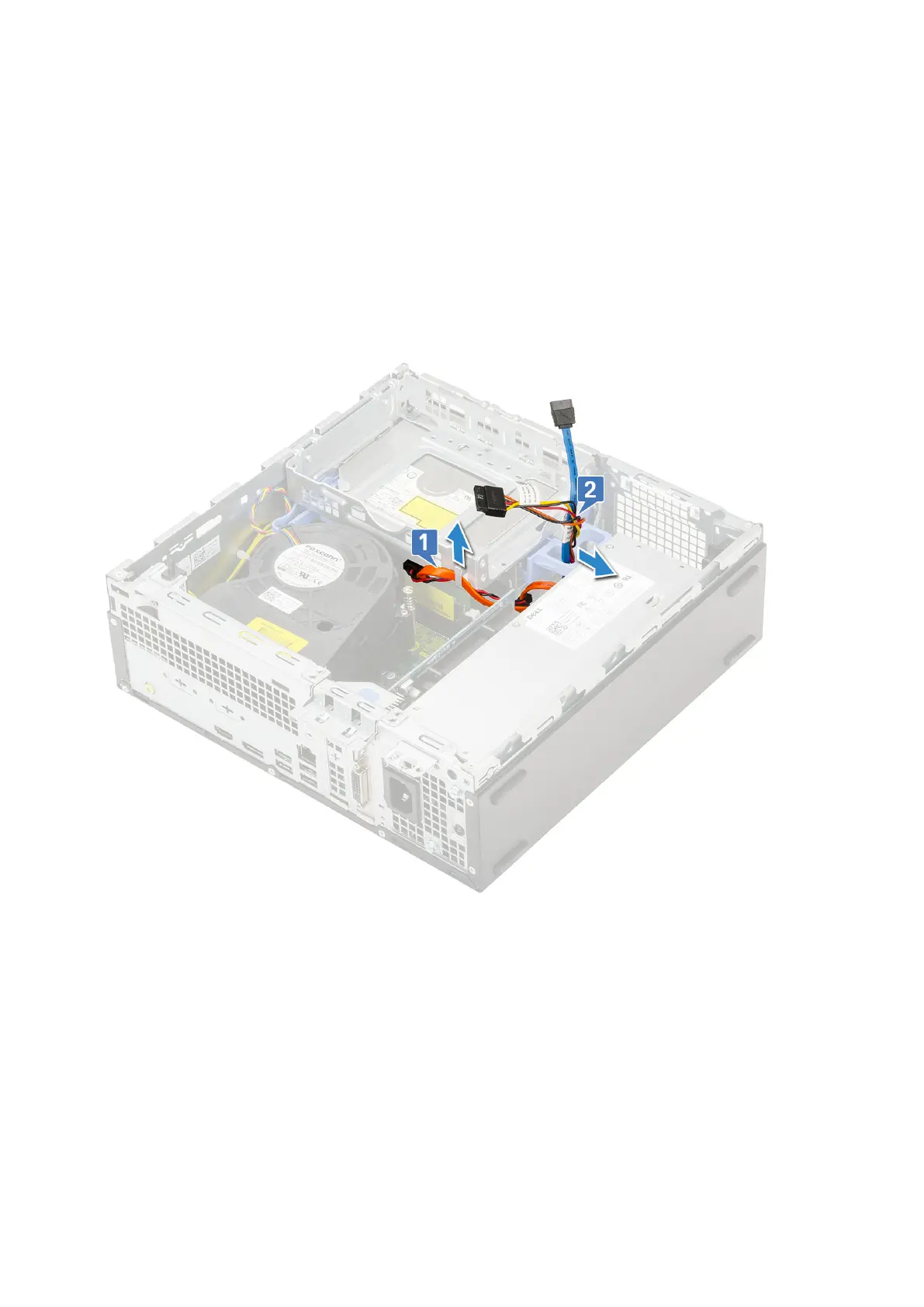

a) Unroute the optical drive cables [1] and hard drive cables [2] through the retention clip and HDD-ODD release tab respectively.
b) Slide the release tab to unlock the hard drive and optical module [1].
c) Lift the hard drive and optical module [2]
