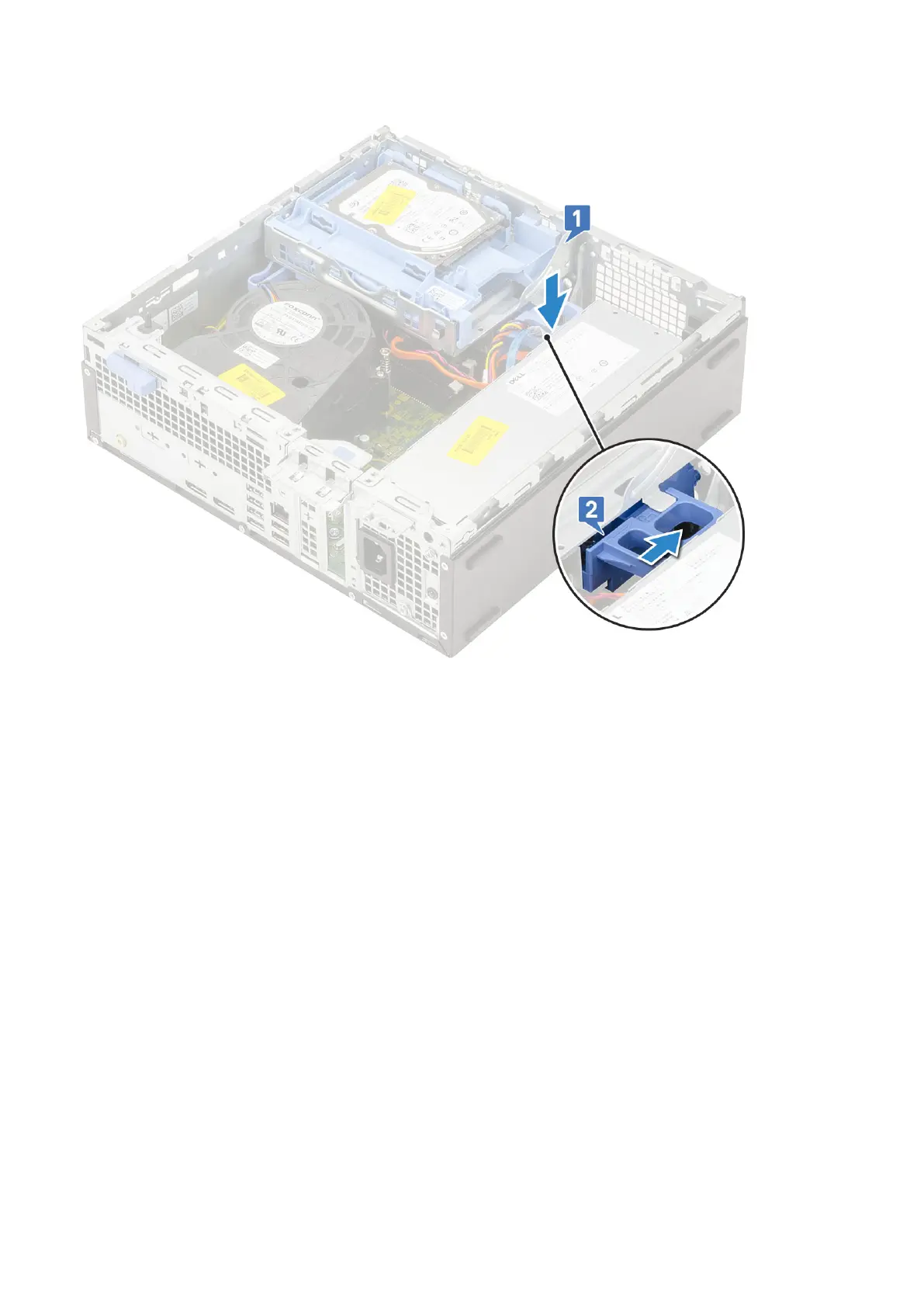

5. Slide the release tab to lock the module [2].
6. Install the:
a) Front bezel
b) Side cover
7. Follow the procedure in After working inside your computer.
Memory module
Removing memory module
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a) Side cover
b) Front bezel
c) HDD assembly
d) Hard drive and optical drive module
3. To remove the memory module:
a) Pry open the retention tabs from both sides to lift the memory module from the connector [1].
b) Remove the memory module from the system board [2].
Removing and installing components
87
