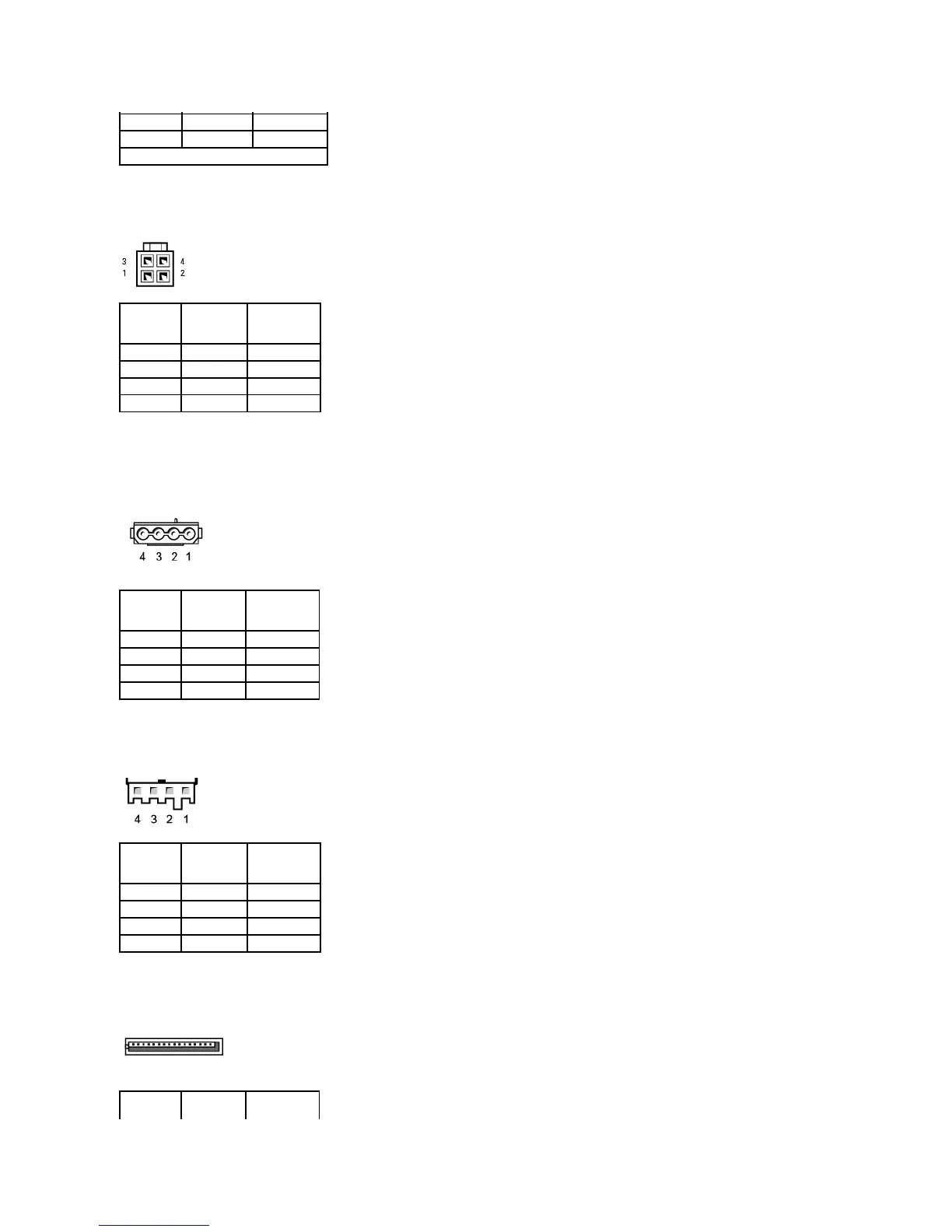

DC Power Connector P2

DC Power Connector P3


DC Power Connector P4

DC Power Connector P5, P6
23
+5 VDC
Red
24
GND
Black
*Uses 22-AWG wire instead of 18-AWG wire.

Pin Number

Signal Name

18-AWG Wire
1
GND
Black
2
GND
Black
3
+12 VDC
Yellow
4
+12 VDC
Yellow

Pin Number

Signal name

18-AWG Wire
1
+12 VDC
Yellow
2
GND
Black
3
GND
Black
4
+5 VDC
Red

Pin Number

Signal Name

22-AWG Wire
1
+5 VCD
Red
2
GND
Black
3
GND
Black
4
+12 VDC
Yellow



