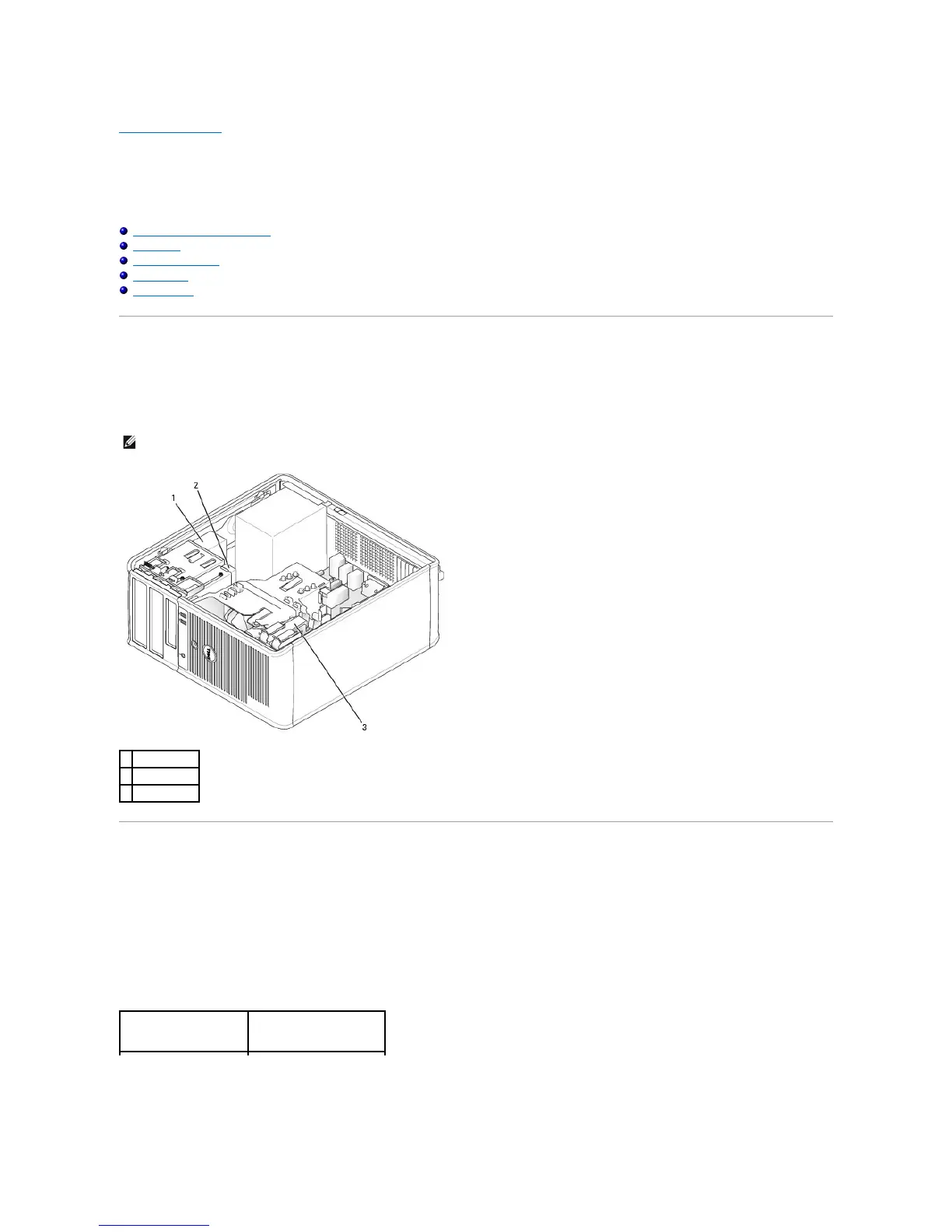

Dell™OptiPlex™320User'sGuide
Drives
General Installation Guidelines
Hard Drive
Drive-Panel Inserts
Floppy Drive
CD/DVD Drive
Your computer supports:
l Up to two SATA (serial ATA) hard drives
l One optional floppy drive
l Up to two CD or DVD drives
General Installation Guidelines
Connecting Drive Cables
When you install a drive, you connect two cablesa DC power cable and a data cableto the back of the drive and to the system board.
Data Cable Connectors
NOTE: Due to the limited number of drive bays and controllers on this computer, you will not be able to connect all supported devices at once.
1
CD/DVD drive
2
floppy drive
3
hard drive
IDE Data Cable Connector
SATA Data Cable Connector
