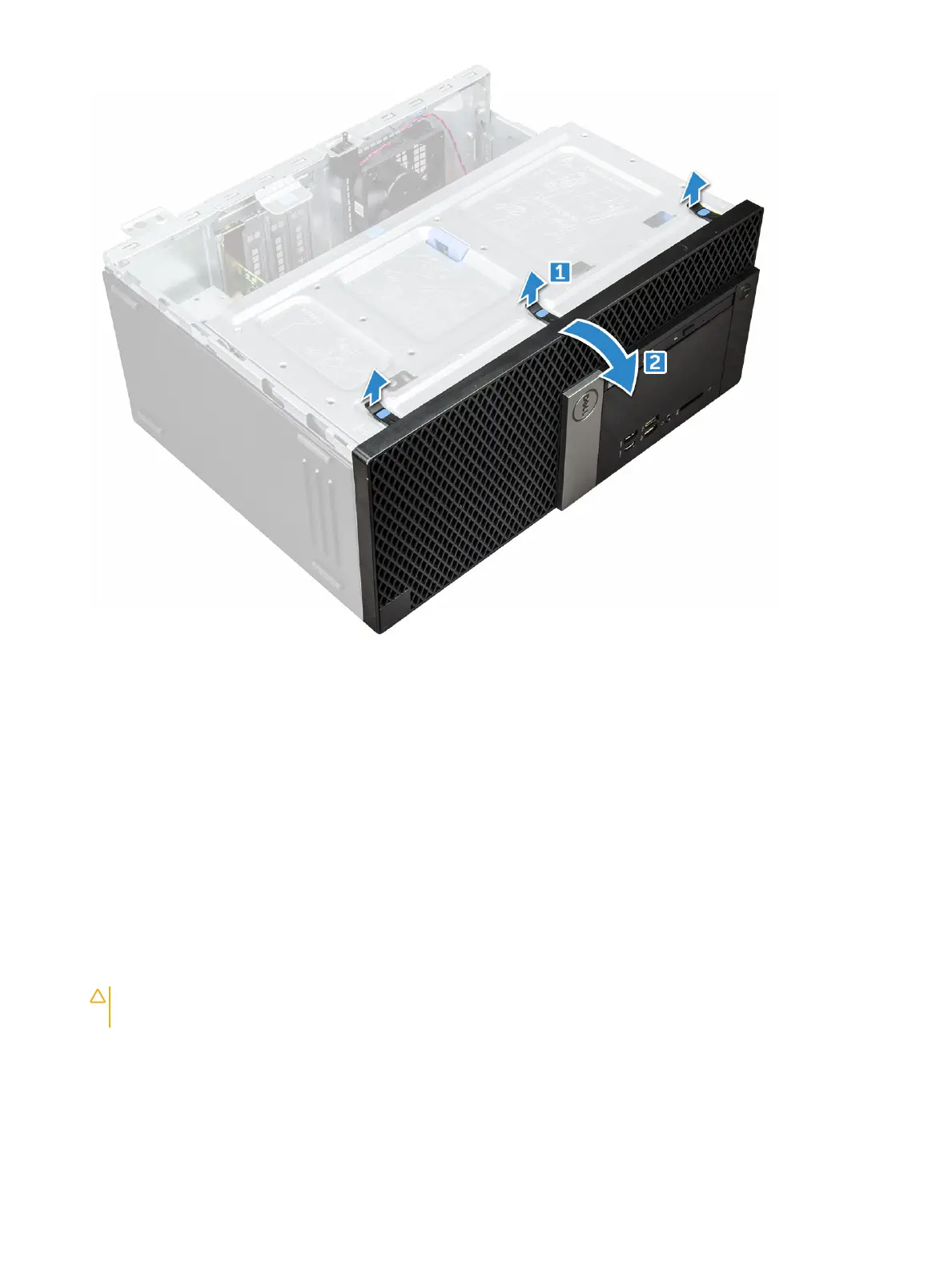

Installing bezel
1 Position the bezel to align the tab holders on the chassis.
2 Press the bezel until the tabs click into place.
3 Install the cover.
4 Follow the procedure in After working inside your computer.
Opening the front panel door
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a cover
b bezel
CAUTION
: The front panel door opens only to a limited extent. See the printed image on the front panel door for the
maximum permissible level.
3 Pull the front panel door to open it.
12
Removing and installing components
