Installing SD card reader
1 Insert the SD card reader into the slot on the front panel door.
2 Tighten the screw to secure the SD card reader to the front panel door.
3 Connect the SD card reader cable to the connector on the system board.
4 Close the front panel door.
5 Install the:
a bezel
b cover
6 Follow the procedure in After working inside your computer.
Memory module
Removing memory module
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a cover
b bezel
3 Open the front panel door.

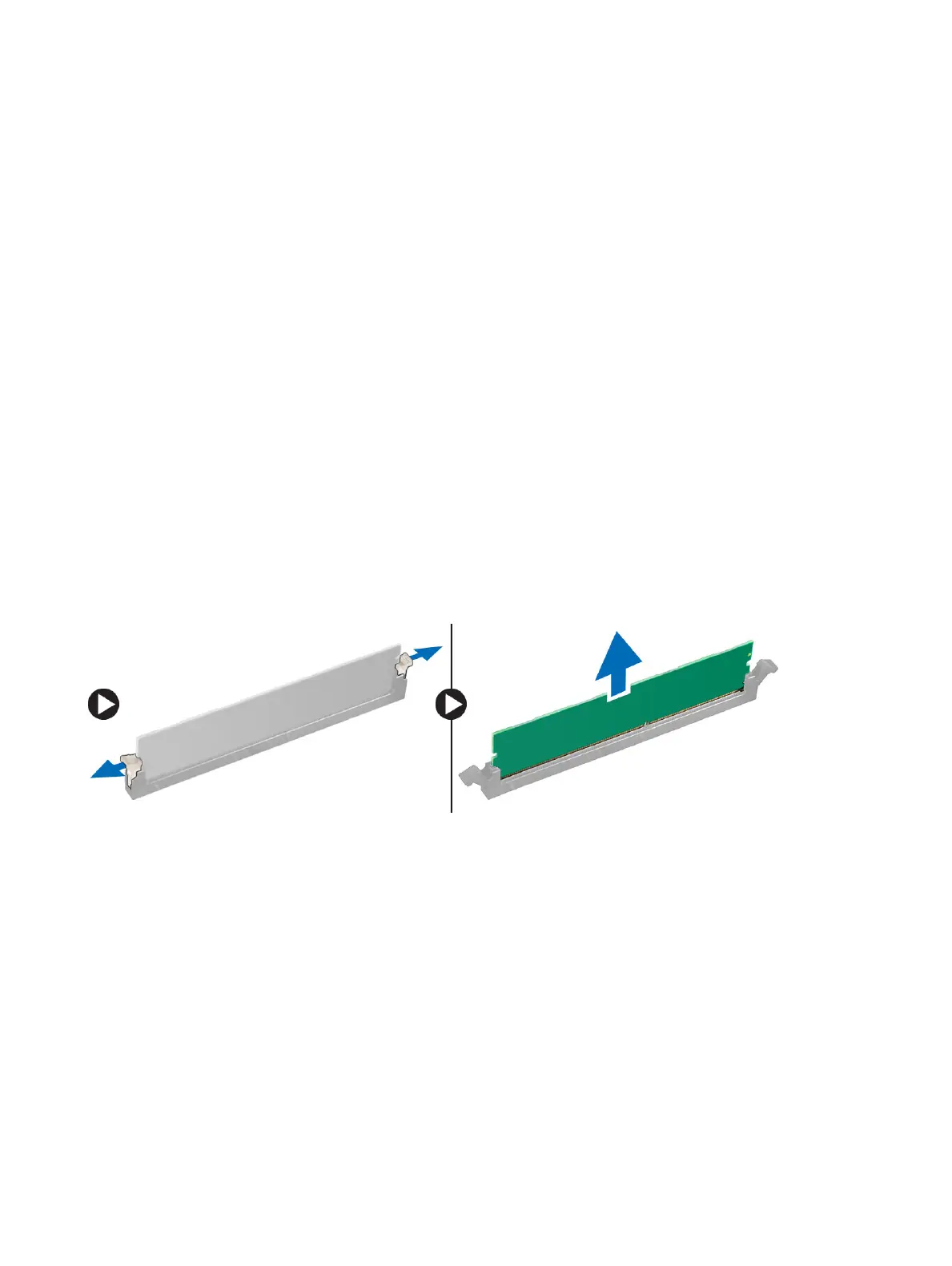

4 To remove the memory module:
a Push the memory module retention tabs on both sides of the memory module.
b Lift the memory module from the memory module connector on the system board.
Installing memory module
1 Align the notch on the memory module with the tab on the memory module connector.
2 Insert the memory module into the memory module socket.
3 Press the memory module until the memory module retention tabs click into place.
4 Close the front panel door.
5 Install the:
a cover
b bezel
6 Follow the procedure in After working inside your computer.
Removing and installing components
