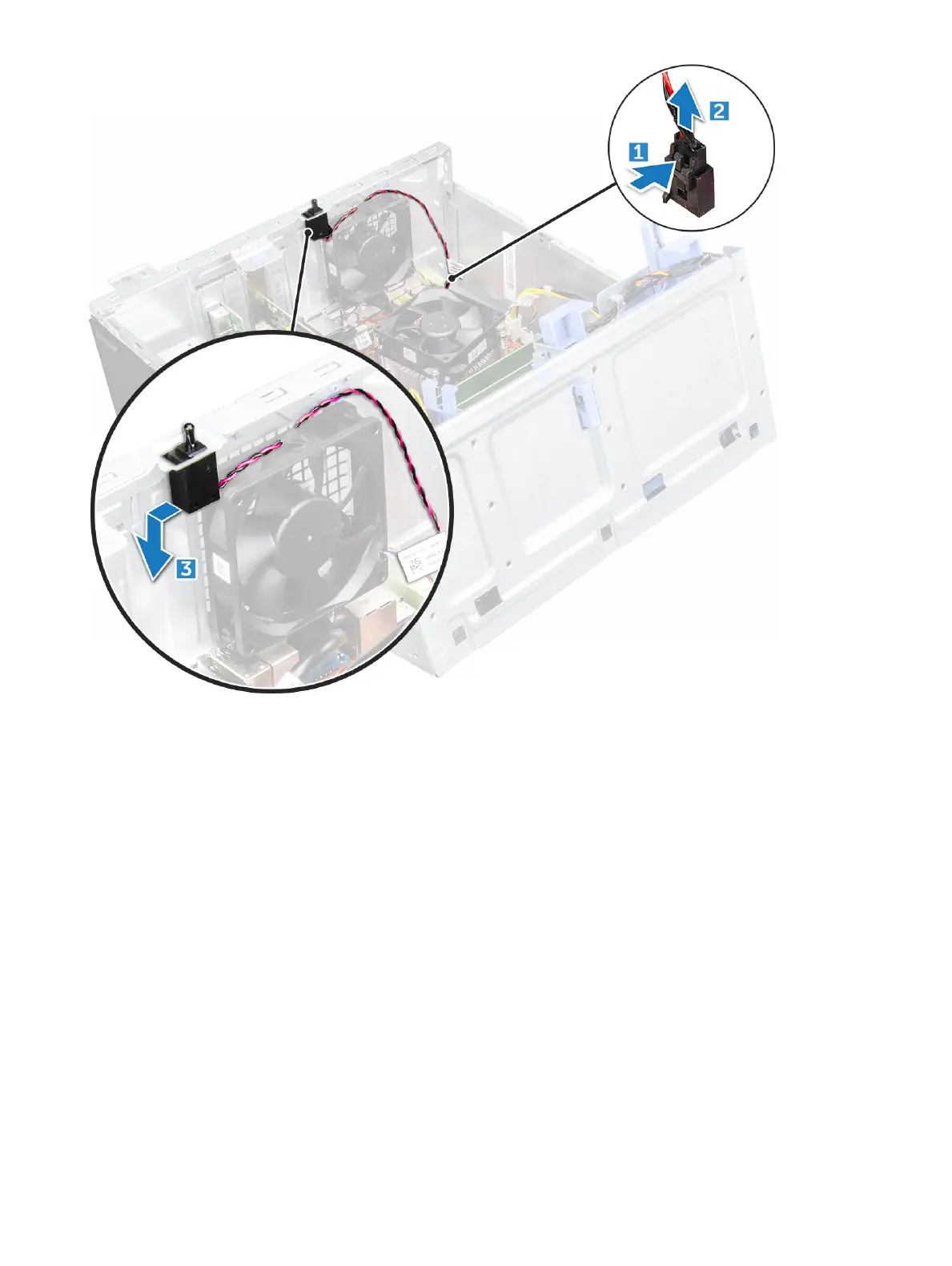

Installing intrusion switch
1 Insert the intrusion switch into the slot on the computer.
2 Route the intrusion switch cable through the fan grommet.
3 Connect the intrusion switch cable to the connector on the system board.
4 Close the front panel door.
5 Install the:
a bezel
b cover
6 Follow the procedure in After working inside your computer.
Power switch
Removing power switch
1 Follow the procedure in Before working inside your computer.
2 Remove the:
30
Removing and installing components
