Installing PCIe expansion card

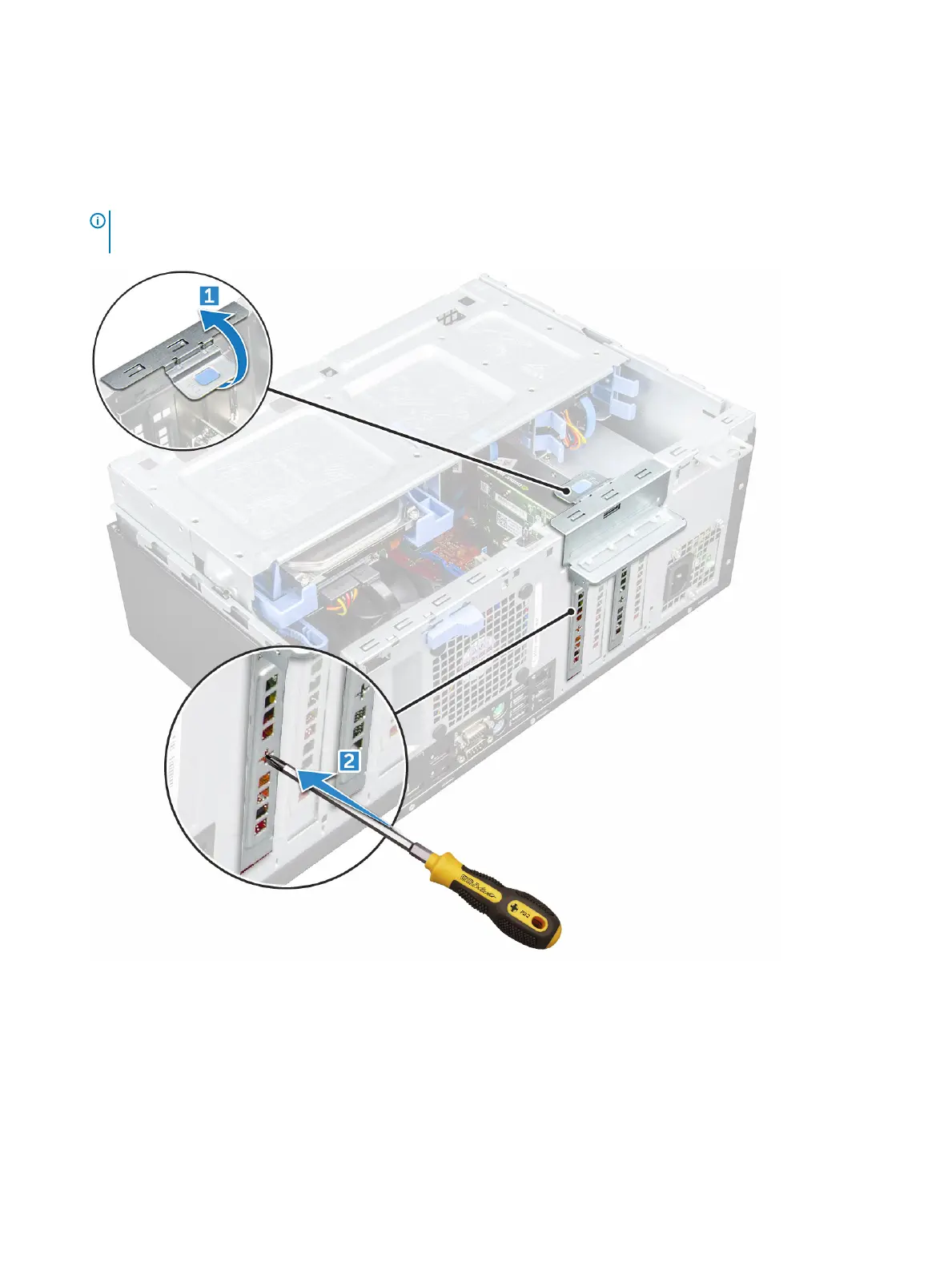

1 Pull the release latch backward to open [1].
2 To remove the PCIe brackets (1 and 3) as shown below, insert a screwdriver in the hole of a PCIe bracket and push hard to release the
bracket [2], and then lift the bracket out from your computer.
NOTE: To remove the PCIe brackets (2 and 4), push the bracket upwards from the inside of your computer to release it and
then lift the bracket away from your computer.
3 Insert the PCIe expansion card to the connector on the system board.
4 Secure the PCIe expansion card by pushing the card retention latch until it clicks into place.
5 Repeat the steps to install any additional PCIe expansion card.
6 Close the release latch.
7 Close the front panel door.
8 Install the:
a bezel
b cover
Removing and installing components
25
