Dell OptiPlex 7050 Tower - Installing Optional M.2 Pcie SSD

3 Open the front panel door.
4 To remove the M.2 PCIe SSD:

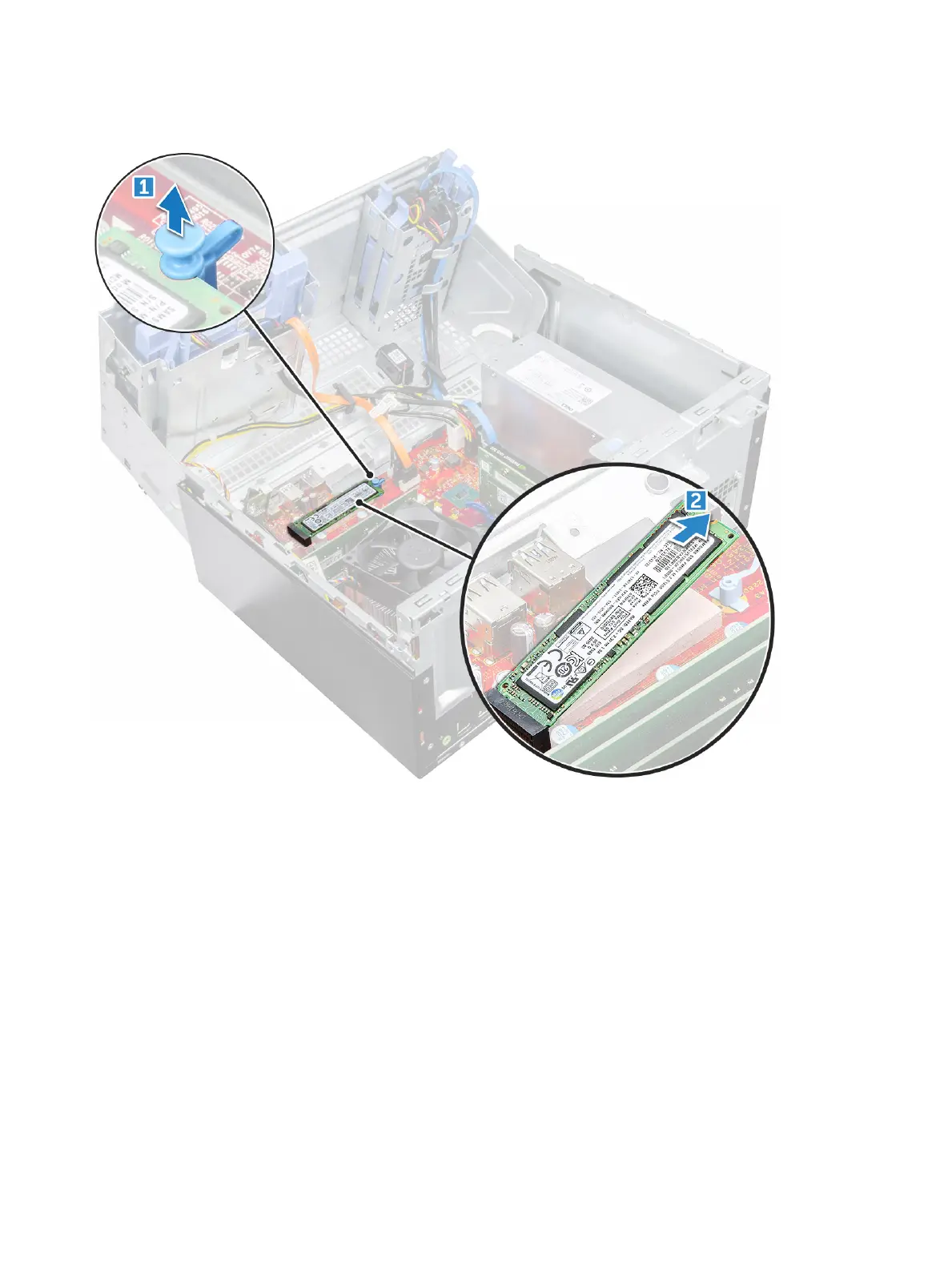

a Pull the blue tab that secures the M.2 PCIe SSD to the system board [1].
b Disconnect the M.2 PCIe SSD from the connector on the system board [2].
Installing optional M.2 PCIe SSD
1 Insert the M.2 PCIe SSD to the connector.
2 Press the blue tab to secure the M.2 PCIe SSD.
3 Close the front panel door.
4 Install the:
a bezel
b cover
5 Follow the procedure in After working inside your computer.
