9 Follow the procedure in After working inside your computer.
Power supply unit
Removing power supply unit (PSU)
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a cover
b bezel
3 Open the front panel door.
4 To release the PSU:

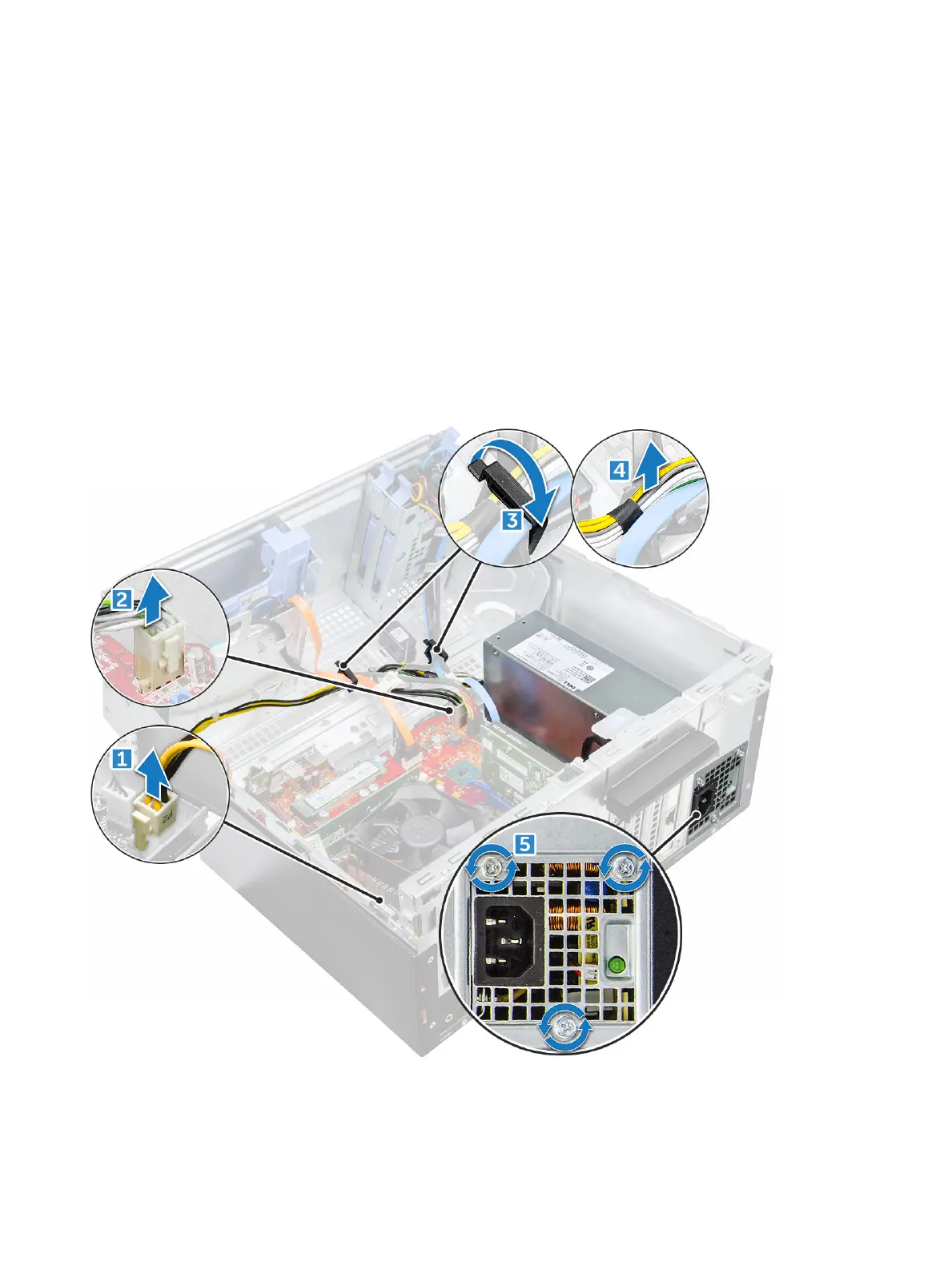

a Disconnect the PSU cables from the connectors on the system board [1] [2].
b Pull the release clip [3].
c Unroute the PSU cables from the retention clip [4].
d Remove the screws that secure the PSU to the computer [5].
5 To remove the PSU:
a Press the release tab [1].
b Slide and lift the PSU away from the computer [2].
