Steps
1. Align the side cover with the grooves on the chassis.
2. Slide the side cover towards the back of the system to install it.

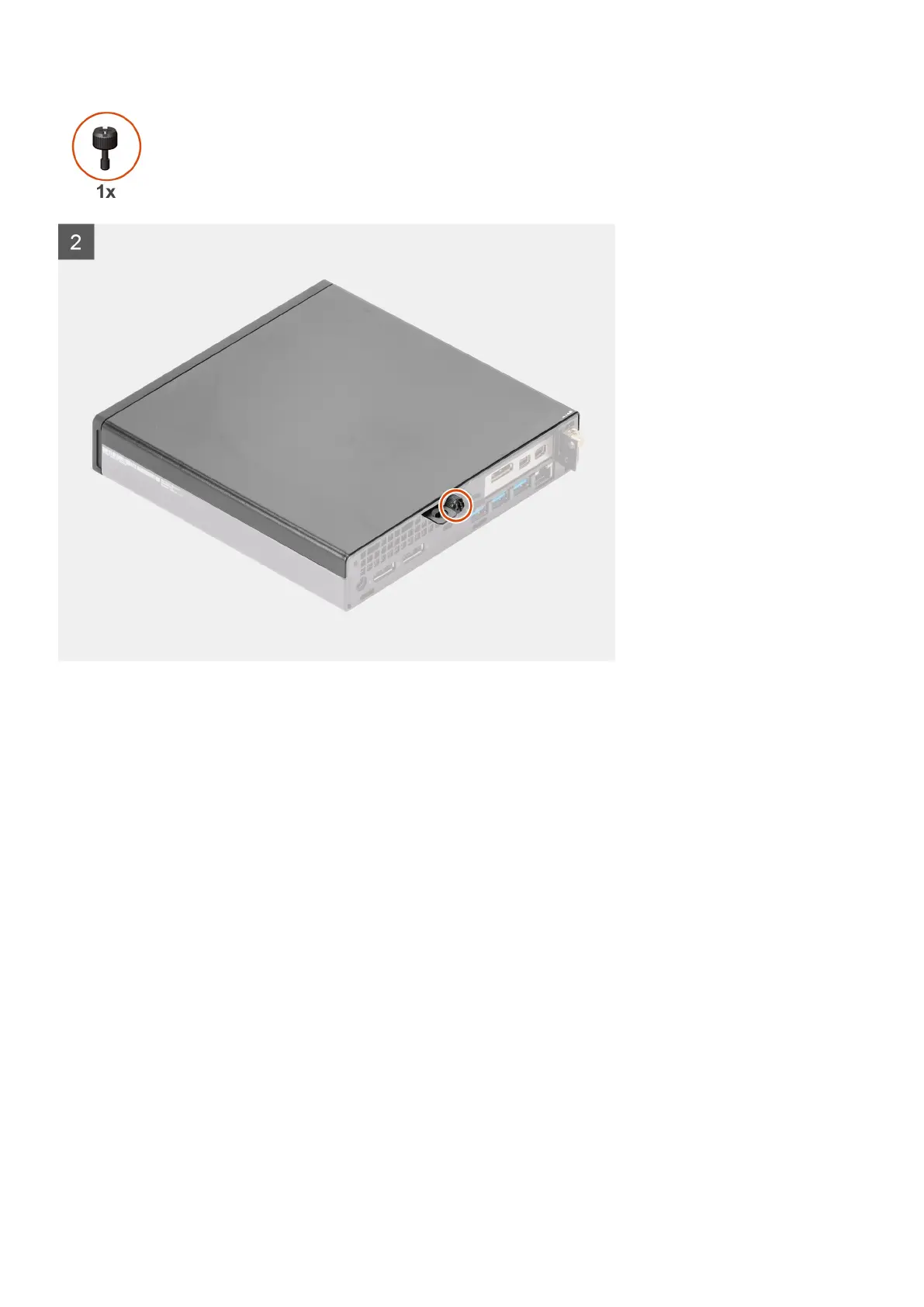

3. Tighten the thumbscrew (6x32) to secure the side cover to the system.
Next steps
1. Follow the procedure in after working inside your computer.
Front bezel
Removing the front bezel
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
About this task
The following images indicate the location of the front bezel and provide a visual representation of the removal procedure.
Removing and installing components
15
