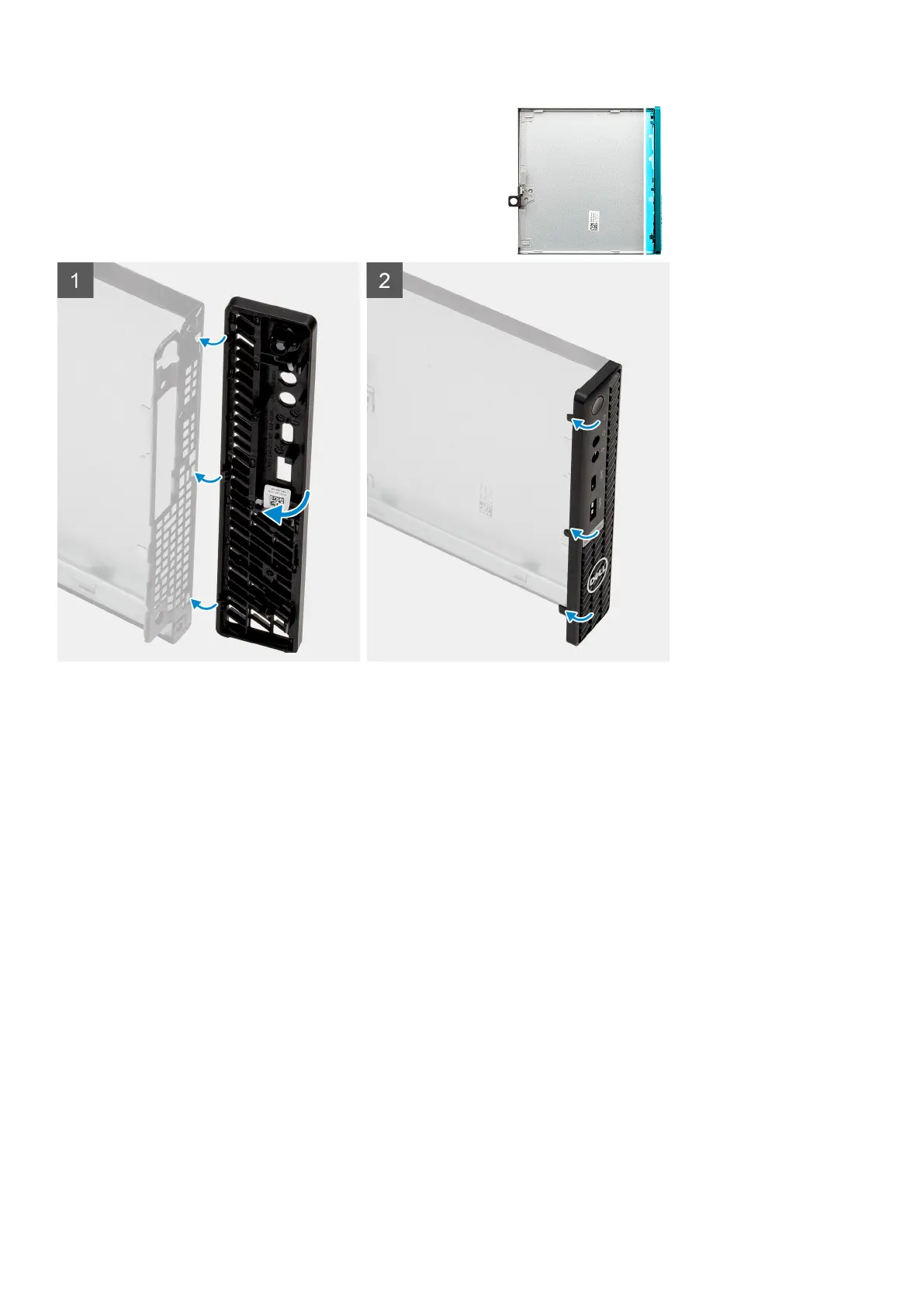

Steps
1. Position the bezel to align the tabs with the slots on the chassis.
2. Press the bezel until the release tabs click into place.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
Solid-state drive
Removing the M.2 2230 PCIe solid-state drive
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
3. Remove the graphics card.
About this task
The following images indicate the location of the solid-state drive and provide a visual representation of the removal procedure.
Removing and installing components
17
