Removing and installing components
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.
Recommended tools
The procedures in this document require the following tools:
Phillips #0 screwdriver
Phillips #1 screwdriver
Flat headed screwdriver
Plastic scribe

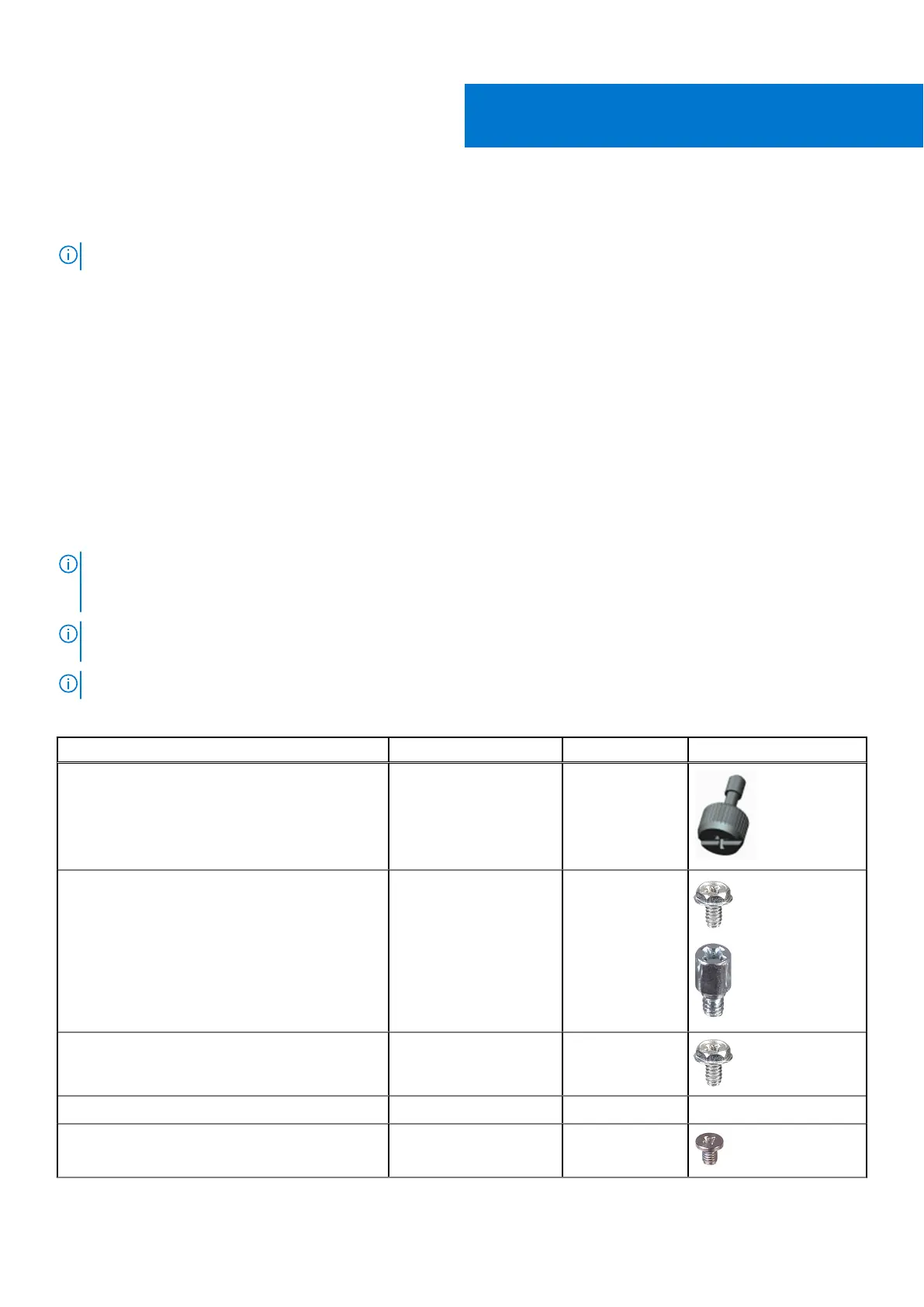

Screw List
The following table shows the screw list and the image of the screws.
NOTE:
When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and
then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surface when
replacing a component.
NOTE: Screw color may vary with the configuration ordered.
Table 1. Screw list
Component Screw type Quantity Image
Side cover #6-32 1
System board #6-32
M2x4
4
3
Hard drive support #6-32
1
Fan and heat sink assembly M3x25 3
WLAN card M2x3.5 1
2
Removing and installing components 9
