Steps

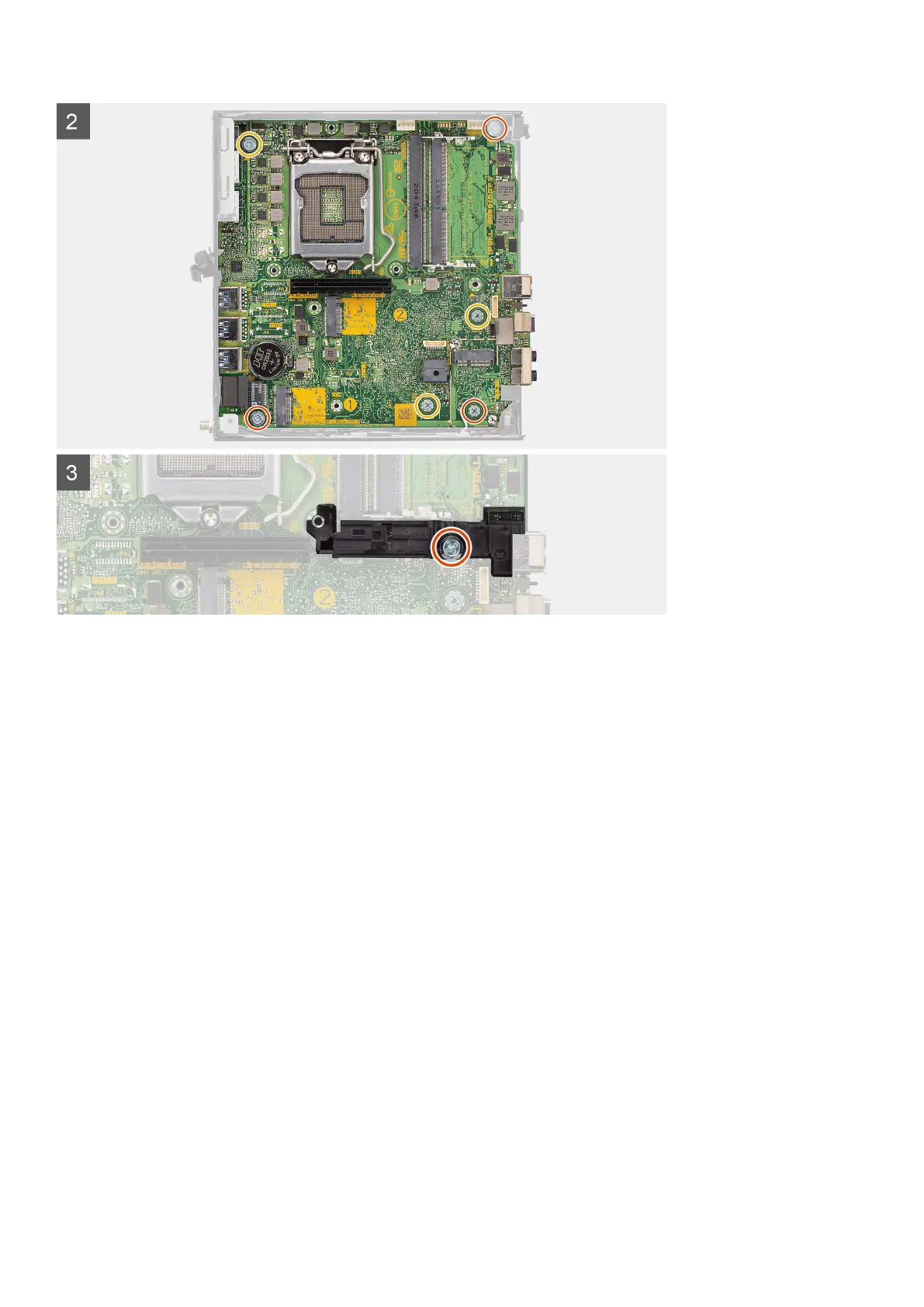

1. Align and lower the system board into the system until the connectors at the back of the system board align with the slots
on the chassis, and the screw holes on the system board align with the standoffs on the system.
2. Replace the three (M3x4) screws and three (6-32) screws to secure the system board to the chassis.
3. Align the slot on the hard drive support with system board and place the hard drive support on the system board.
4. Replace the screw (6-32) to secure the hard drive support to the system board.
Next steps
1. Install the processor.
2. Install the speaker.
3. Install the memory module.
4. Install the fan assembly.
5. Install the WLAN card.
6. Install the solid-state drive.
7. Install the graphics card.
8. Install the side cover.
9. Follow the procedure in after working inside your computer.
Graphics card
Removing the graphics card
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
Removing and installing components
41
