Steps

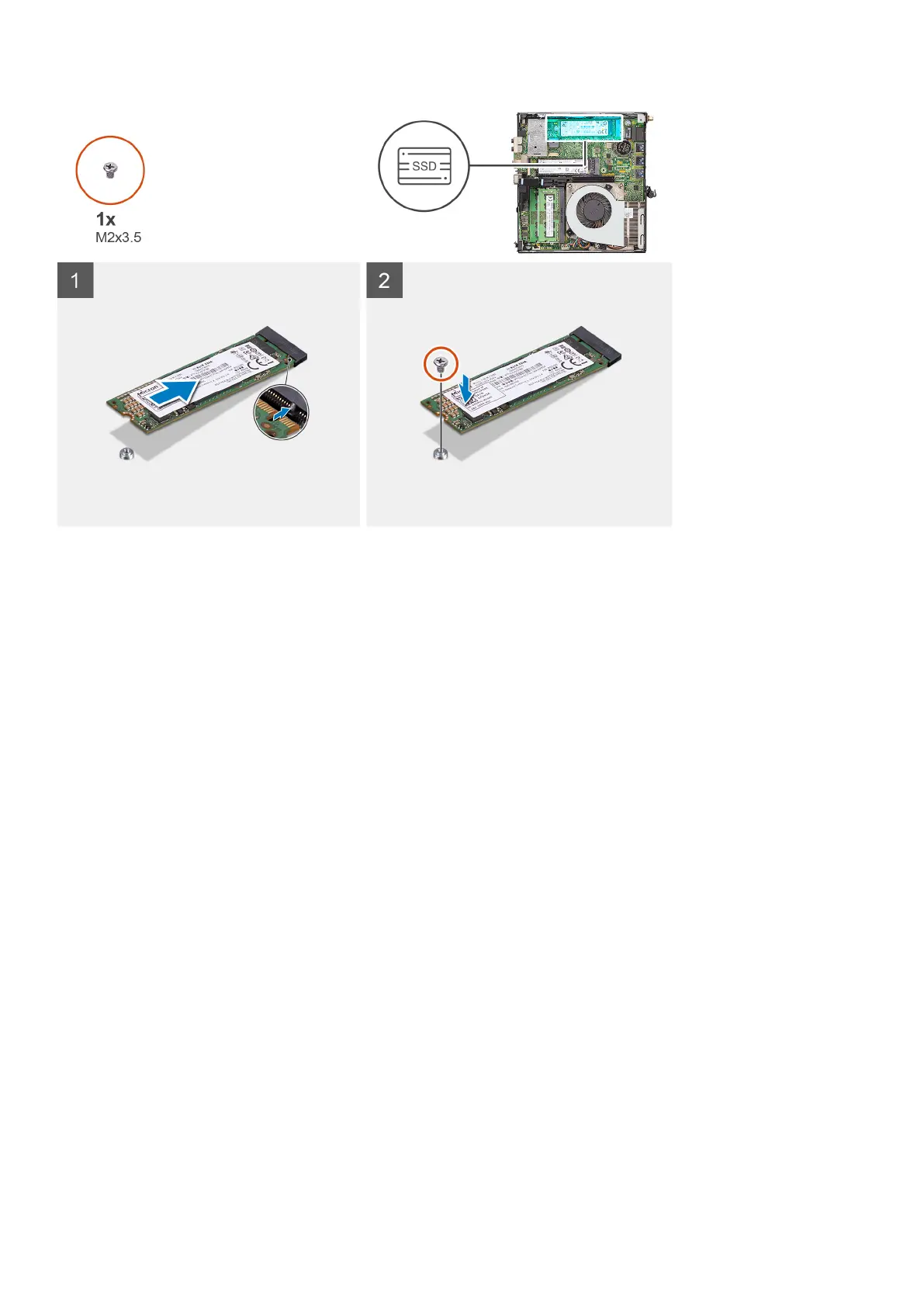

1. Align the notch on the solid-state drive with the tab on the solid-state drive connector on the system board.
2. Insert the solid-state drive at a 45-degree angle into the solid-state drive connector.
3. Replace the screw (M2x3.5) that secures the M.2 2280 PCIe solid-state drive to the system board.
Next steps
1. Install the graphics card.
2. Install the side cover.
3. Follow the procedure in after working inside your computer.
WLAN card
Removing the WLAN card
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
3. Remove the graphics card
About this task
The following images indicate the location of the wireless card and provide a visual representation of the removal procedure.
Removing and installing components
21
