Steps
1. Disconnect the fan cable from the connector on the system board.
2. Remove the three (M3x25)screws that secures the fan assembly to the system board.
3. Lift the fan assembly away from the system board.
Installing the fan assembly-Discrete configuration
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

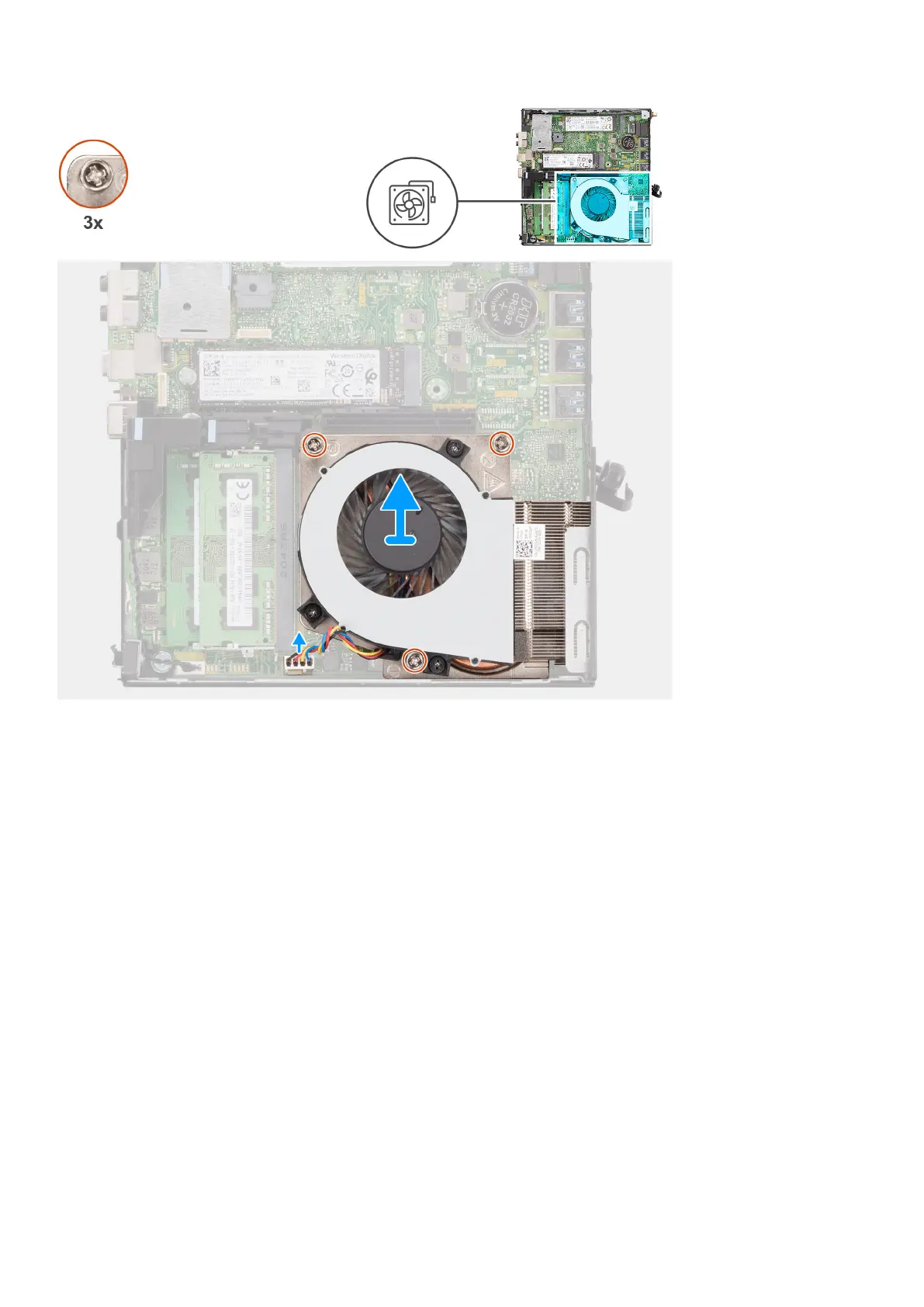

The following images indicate the location of the fan assembly and provide a visual representation of the removal procedure.
Removing and installing components
25
