Removing the Processor Fan Module
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the cover.

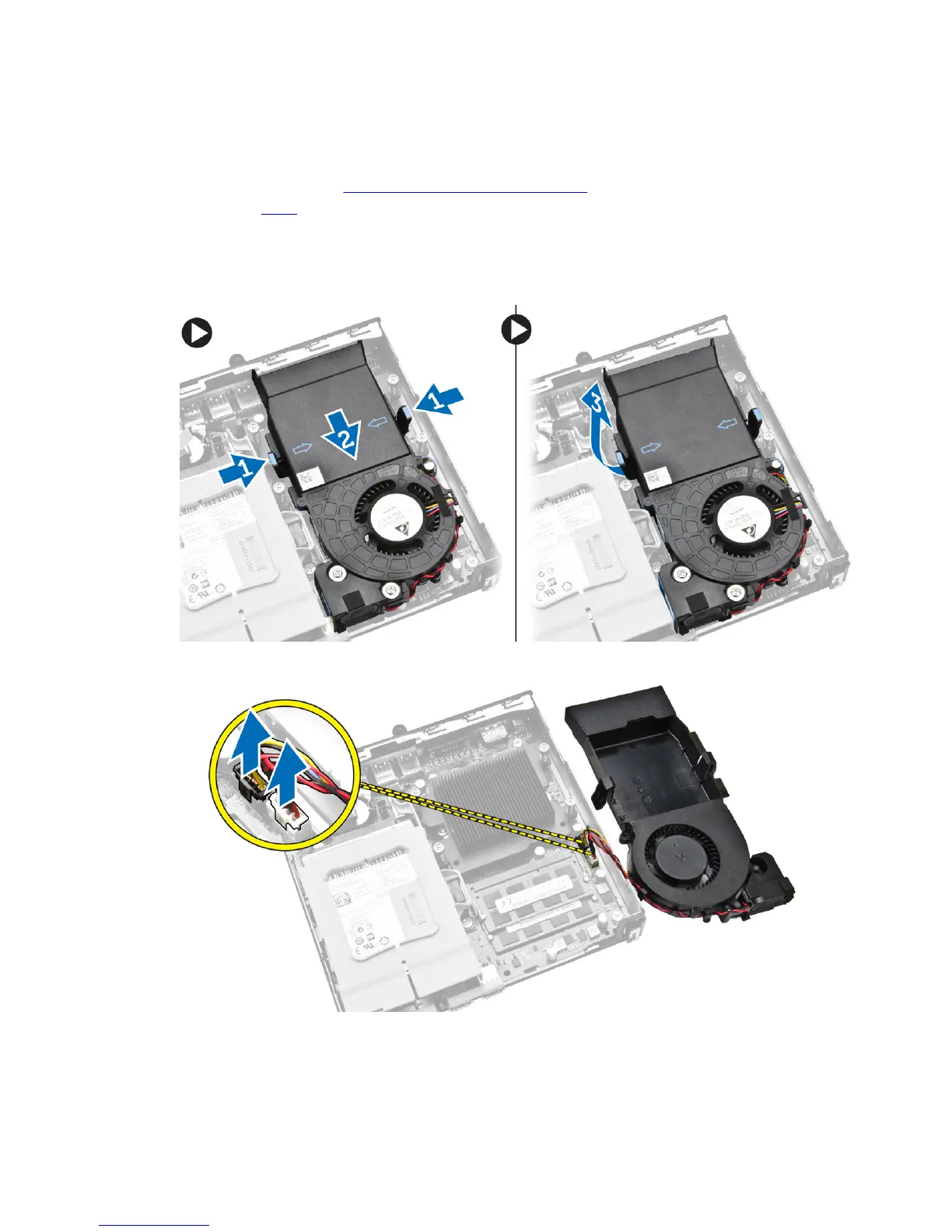

3. Perform the following steps as shown in the illustration:
a. Press the securing tabs on the sides [1].
b. Slide the processor fan module outwards [2].
c. Lift the processor fan module away from the computer [3].
4. Disconnect the speaker and fan cables from the system board.
