Dell OptiPlex 9020M - Installing the HDMI or Displayport Connector Board; Removing the PS2 and Serial Connector Board

Installing the HDMI or DisplayPort Connector Board
1. Place the HDMI or DisplayPort connector board into its slot.
2. Tighten the screws to secure the HDMI or DisplayPort connector board to the base panel.
3. Connect the cable to the HDMI or DisplayPort connector board.
4. Install the cover.
5. Follow the procedures in After Working Inside Your Computer.
Removing the PS2 and Serial Connector Board
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the cover.

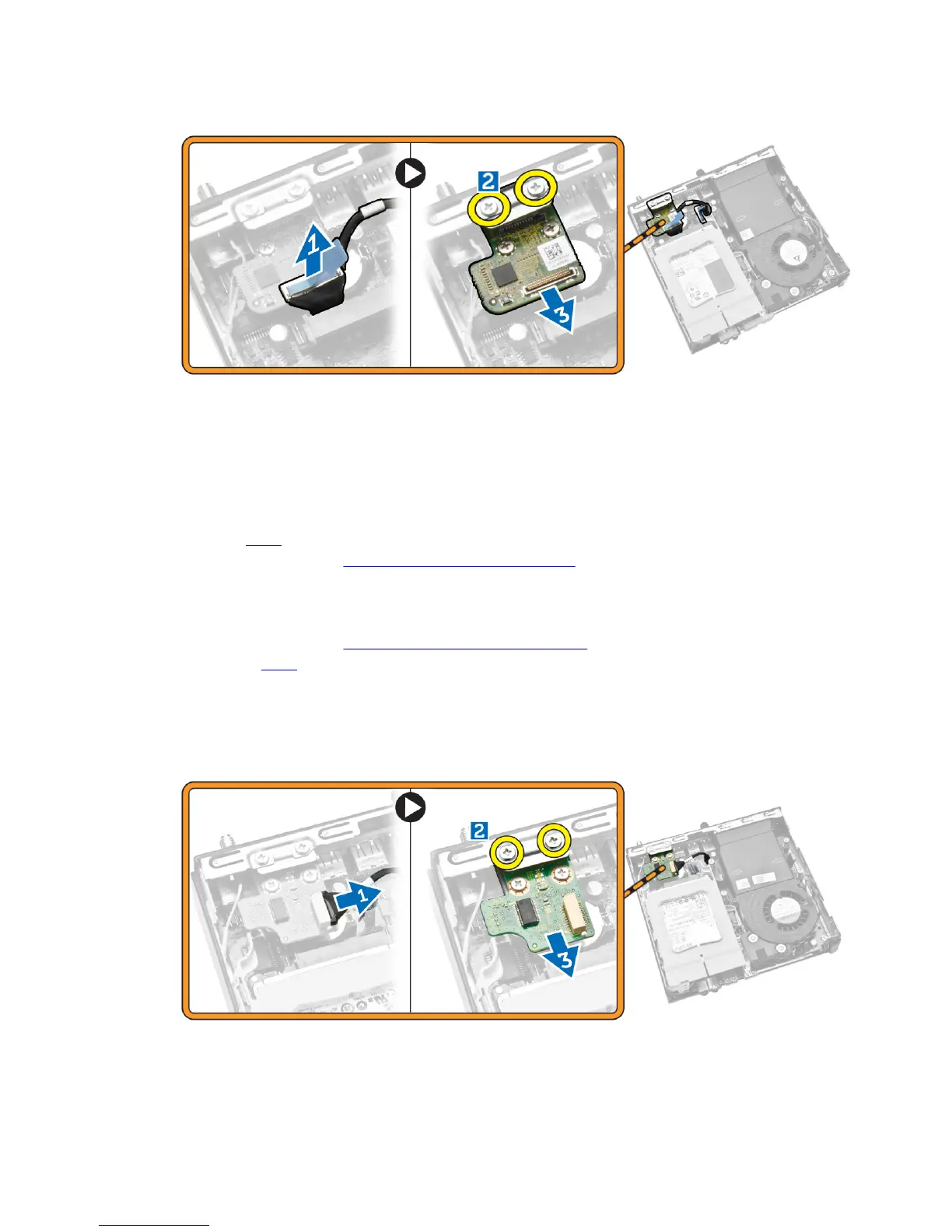

3. Perform the following steps as shown in the illustration:
a. Disconnect the cable from the PS2 and serial connector board [1].
b. Remove the screws that secure the PS2 and serial connector board to the base panel [2].
c. Slide and lift the PS2 and serial connector board away from the computer [3].
