Installing the Dell OptiPlex Micro Dual VESA Mount
Recommended Screws:
Screw Type
Used in
M4 x L10 mm, Pan head screw Monitor
Prerequisite: Install the power adapter.

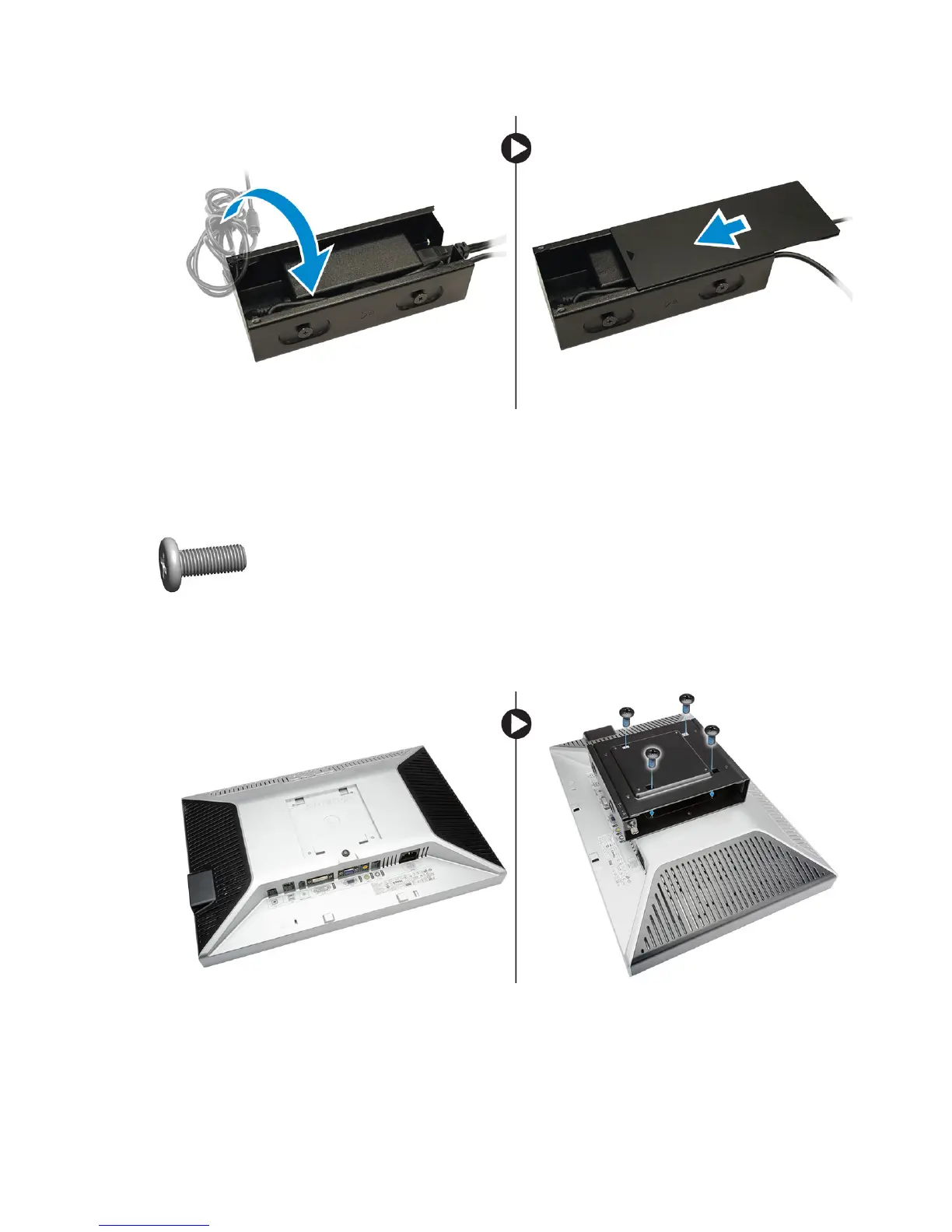

1. Align the dual VESA mount behind the monitor and tighten the screws to secure the dual VESA
mount to the monitor.
2. Perform the following steps as shown in the illustration:
a. Slide the computer into the dual VESA mount. [1]
b. Rotate the screw in clockwise direction to secure the computer to the dual VESA mount. [2]
