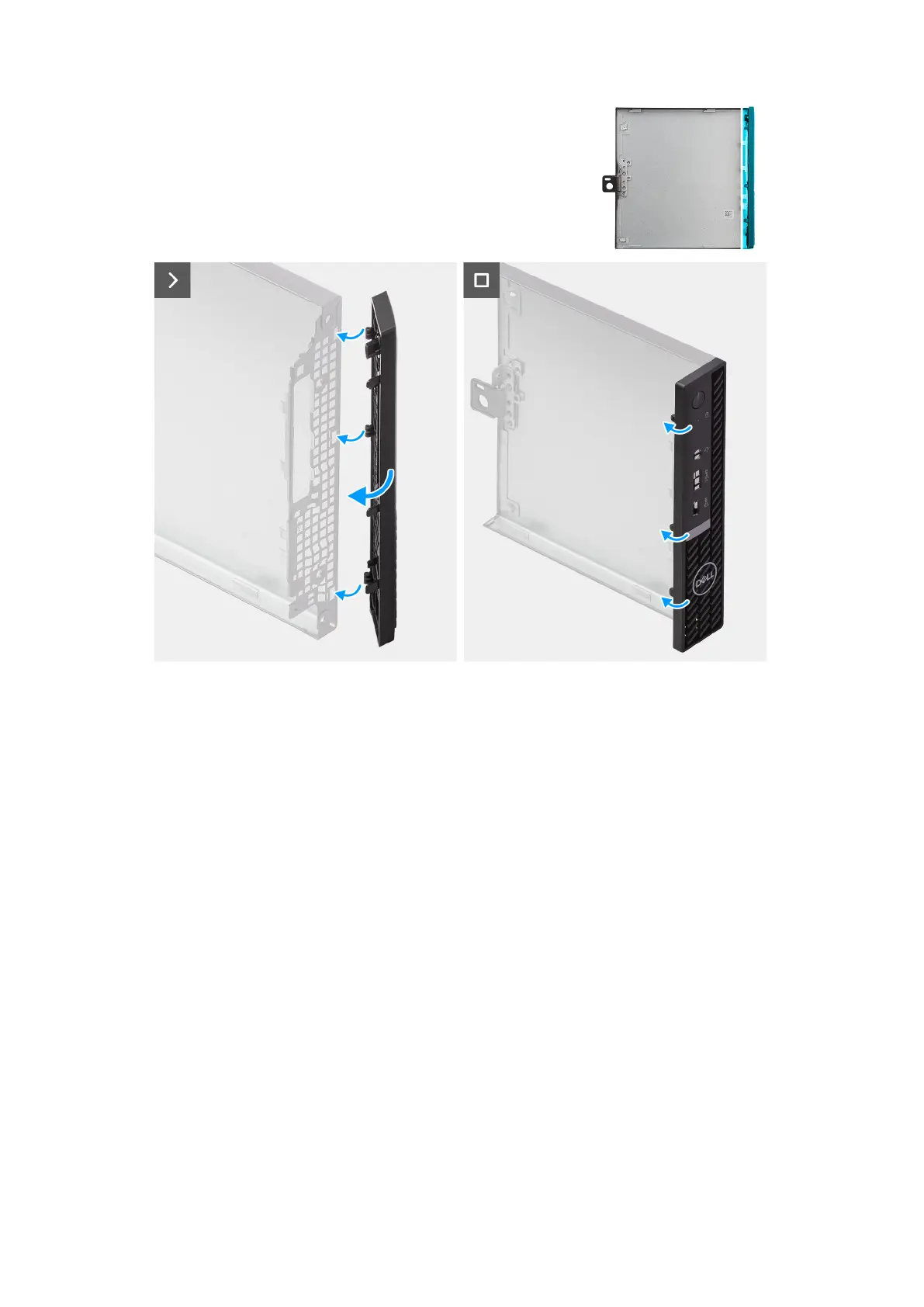

Figure 16. Installing the front bezel
Steps
1. Insert the right-side front-bezel tabs into the corresponding slots on the side cover.
2. Push the left-side of the front bezel towards the side cover, snapping the tabs into position.
Next steps
1. Install the side cover.
2. Follow the procedure in After working inside your computer.
Speaker
Removing the speaker
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
About this task
The following image(s) indicate the location of the speaker and provides a visual representation of the removal procedure.
Removing and installing Customer Replaceable Units (CRUs)
39
