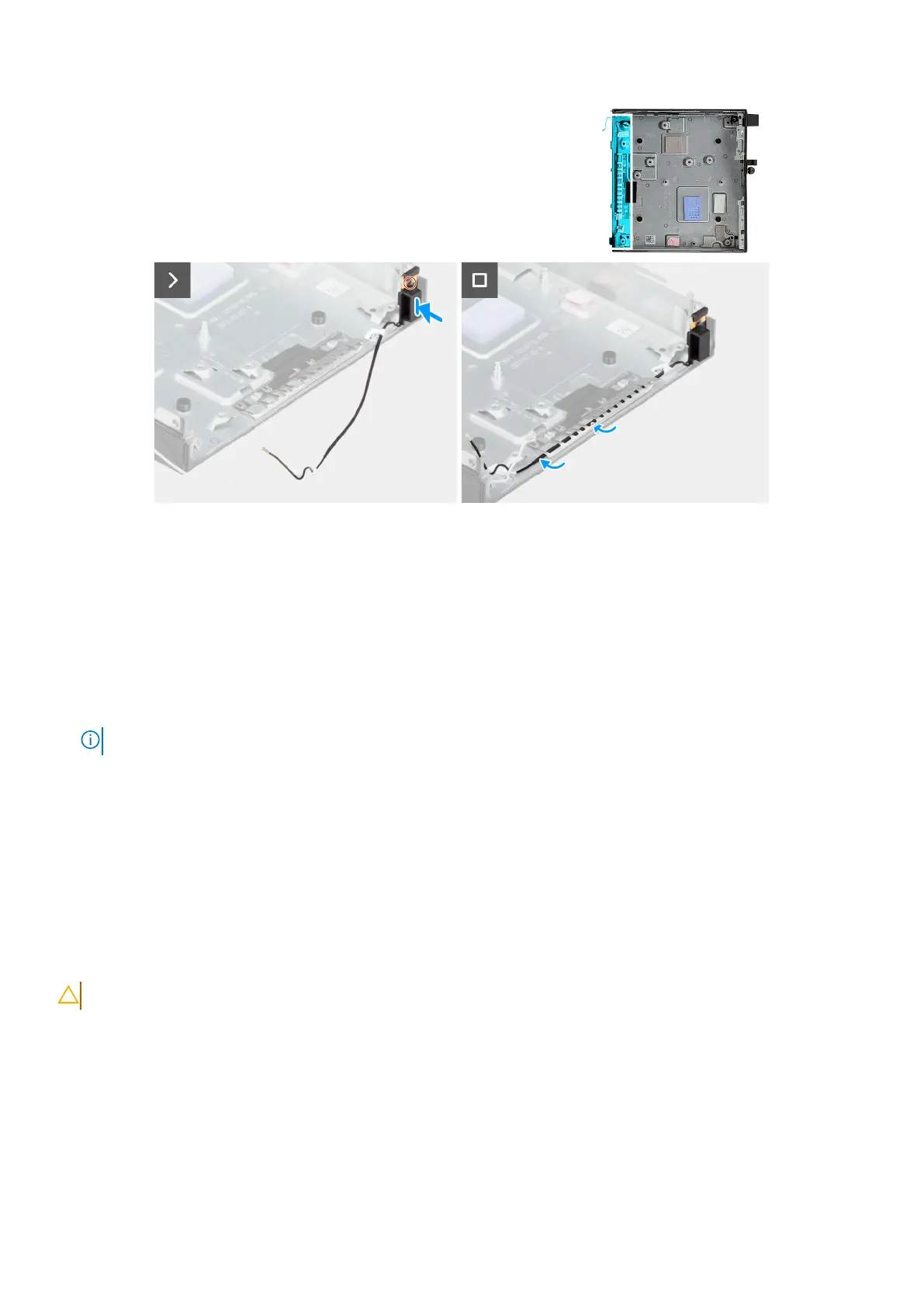

Figure 53. Installing the antenna module (black cable)
Steps
1. Place the antenna module (black cable) on the chassis.
2. Align the captive screw on the antenna module (black cable) to the screw hole on the chassis.
3. Tighten the captive screw that secures the antenna module (black cable) to the chassis.
4. Route the antenna cable through the routing guides on the chassis.
Next steps
1. Install the system board
NOTE: The system board can be installed with the memory, coin-cell battery, and processor preattached.
2. Install the optional I/O module (HDMI/VGA/DP/Serial/PS2) or the optional Type-C module, whichever is applicable.
3. Install the fan.
4. Install the wireless card.
5. Install the heat sink.
6. Install the M.2 2230 solid-state drive or M.2 2280 solid-state drive, whichever is applicable.
7. Install the speaker.
8. Install the side cover.
9. Follow the procedure in After working inside your computer.
Removing SMA antenna assembly
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
3. Remove the wireless card.
Removing and installing Field Replaceable Units (FRUs)
79
