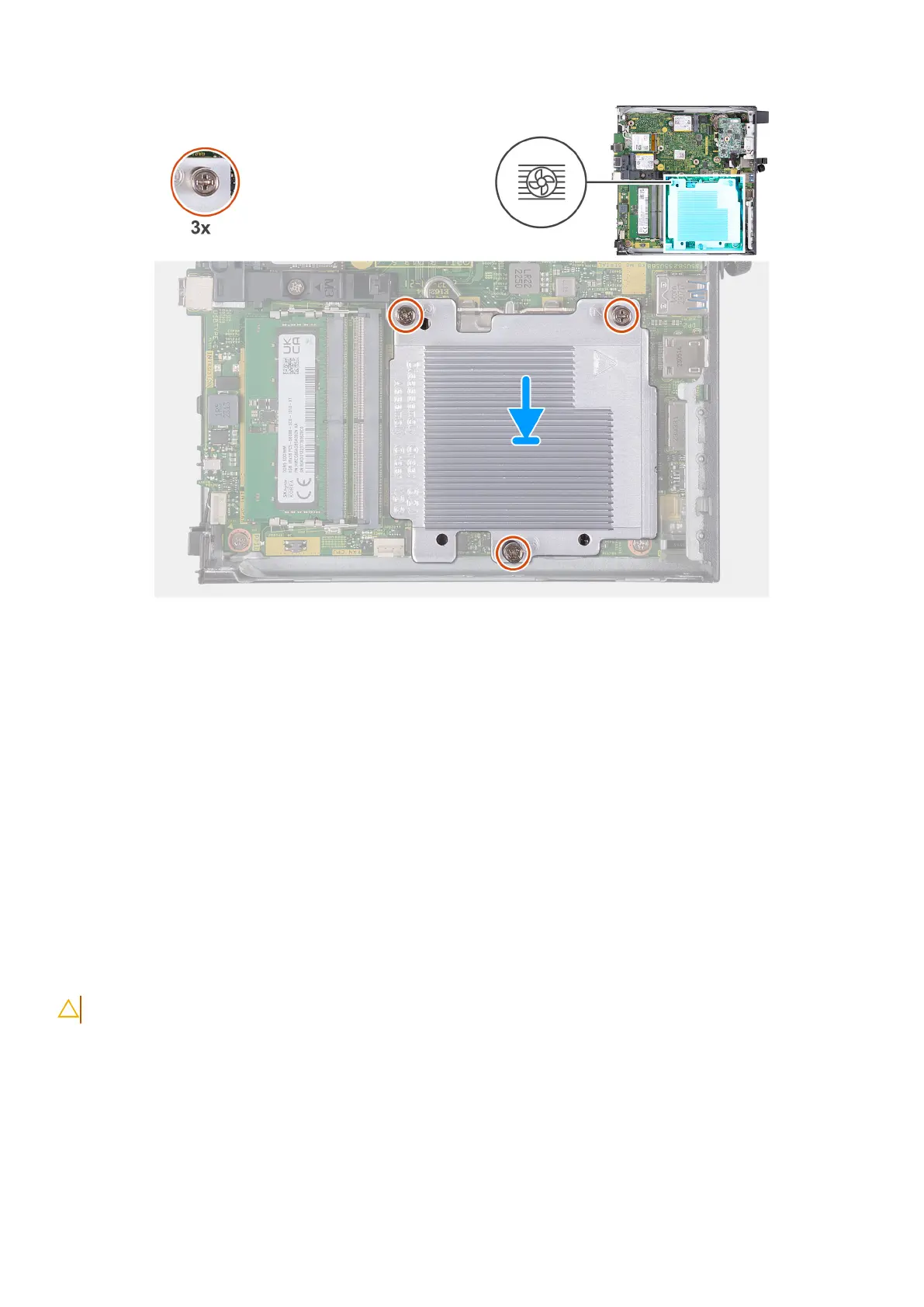

Figure 41. Installing the heat sink
Steps
1. Place the heat sink on the system board.
2. Align the screw holes on the heat sink with the screw holes on the system board.
3. In sequential order (1->2->3), tighten the three captive screws that secure the heat sink to the system board.
Next steps
1. Install the fan.
2. Install the speaker.
3. Install the side cover.
4. Follow the procedure in After working inside your computer.
Processor
Removing the processor
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the speaker.
4. Remove the fan.
5. Remove the heat sink.
66
Removing and installing Field Replaceable Units (FRUs)
