About this task
The following images indicate the location of SMA antenna assembly and provide a visual representation of the removal
procedure.
NOTE: To upgrade to an SMA antenna, the internal antenna (white cable) has to be removed.

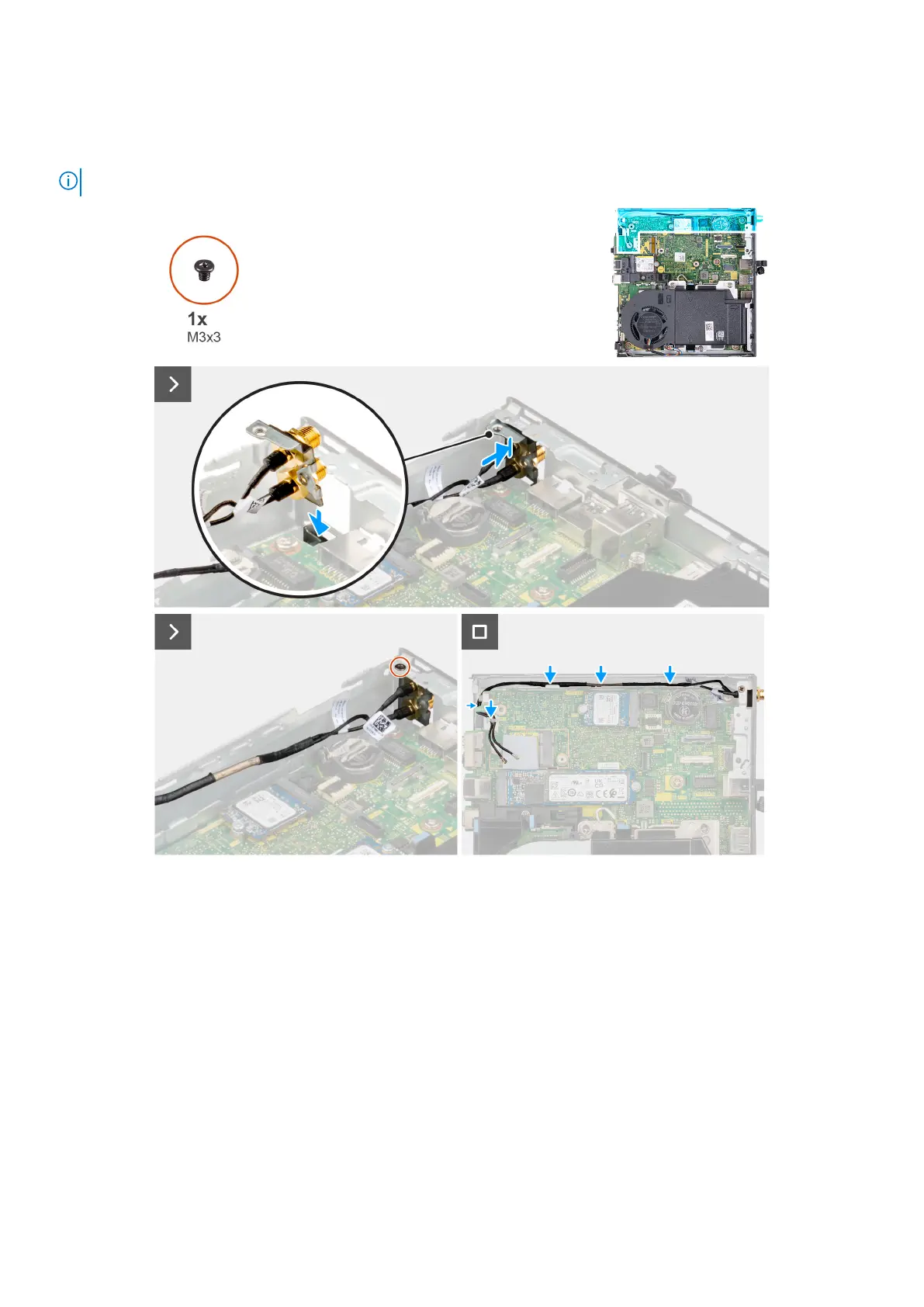

Figure 55. Installing SMA antenna (Location 3)
Steps
1. Remove the fillers on the side cover.
2. Tilt the SMA antenna assembly.
3. Align and place the antenna bracket on the system board.
4. Insert the SMA antenna assembly in the back view opening.
5. Align the screw hole on the SMA antenna assembly with the screw hole on the back view.
6. Replace the screw (M3x3) that secures the SMA antenna assembly to the chassis.
7. Route the SMA antenna assembly cables through the routing guides on the chassis.
Next steps
1. Install the wireless card.
2. Install the side cover.
3. Follow the procedure in after working inside your computer.
Removing and installing Field Replaceable Units (FRUs)
81
