● M.2 2280 SSD

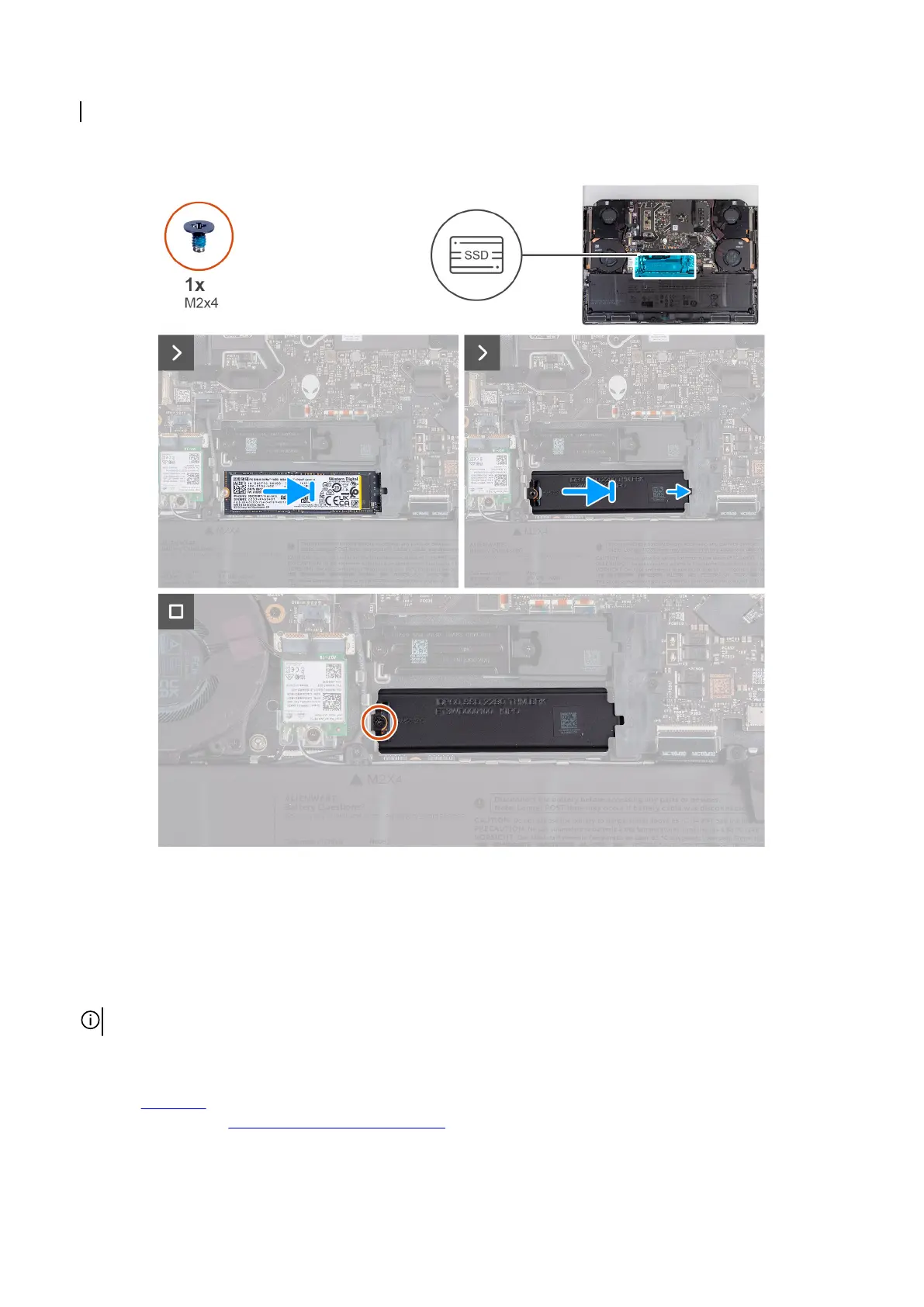

The following images indicate the location of the M.2 2280 SSD in SSD-1 and provide a visual representation of the installation
procedure.
Steps
1. Align the notch on the SSD with the tab on the SSD slot.
2. Slide the SSD into the SSD slot.
3. Slide the SSD thermal shield into the SSD slot.
4. Align the screw hole on the SSD thermal shield with the screw hole on the SSD and palm-rest and keyboard assembly.
5. Replace the screw (M2x4) that secures the M.2 2280 SSD thermal shield to the SSD and palm-rest and keyboard assembly.
NOTE: Repeat step 1 to step 5 to install the SSD on the SSD-2 slot on your computer.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
