Dell P120F - Installing the Wireless Card

Steps
1. Remove the two screws (M2x4) that secures the wireless card thermal shield to the wireless card and palm-rest and keyboard
assembly.
NOTE: The thermal shield is applicable for computers that are shipped with certain configurations only.
2. Lift the wireless card thermal shield off the palm-rest and keyboard assembly.

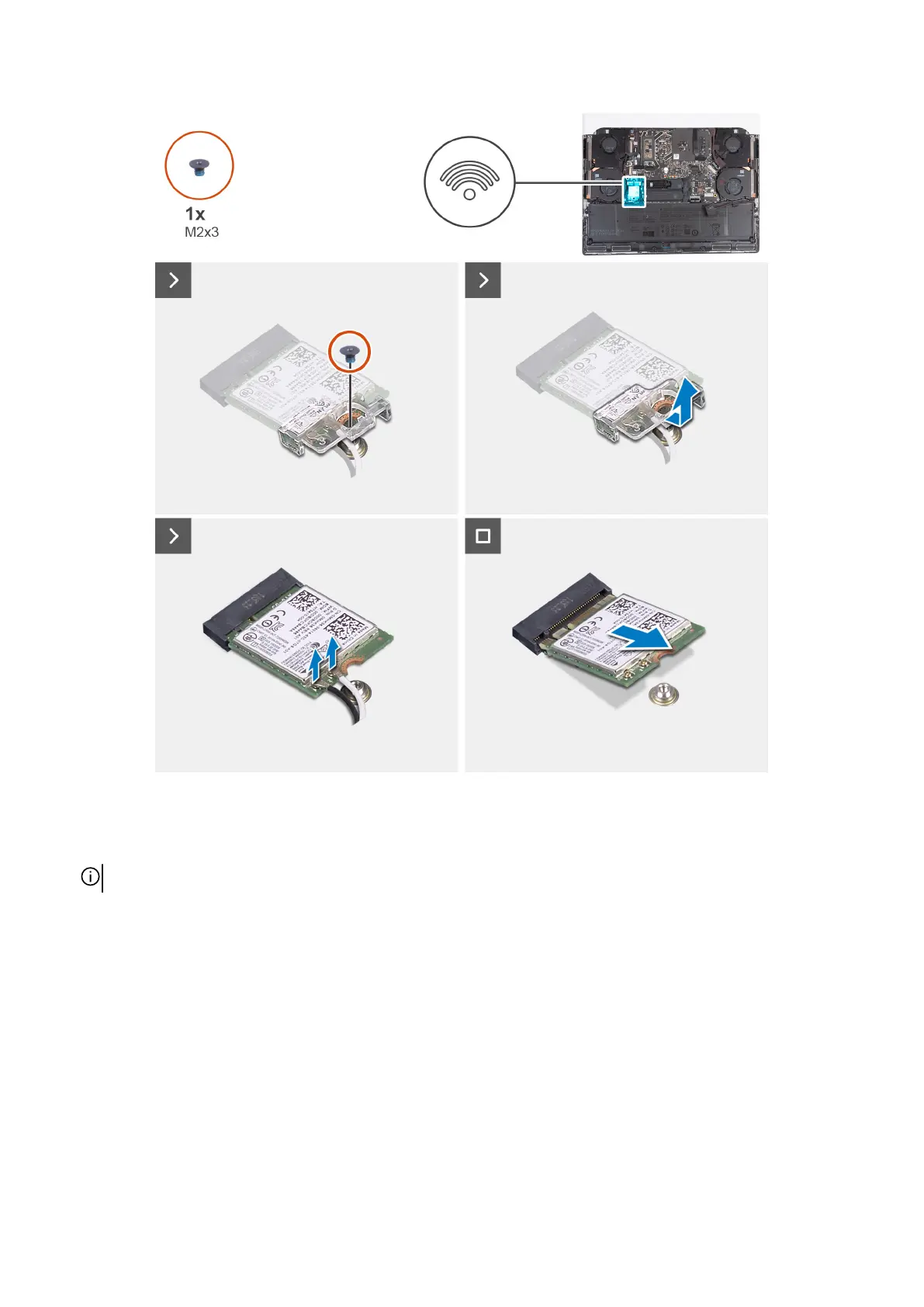

3. Remove the screw (M2x3) that secures the wireless-card bracket to the wireless card and palm-rest and keyboard assembly.
4. Slide and remove the wireless-card bracket off the wireless card.
5. Disconnect the antenna cables from the wireless card.
6. Slide and remove the wireless card from the wireless-card slot.
Installing the wireless card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
