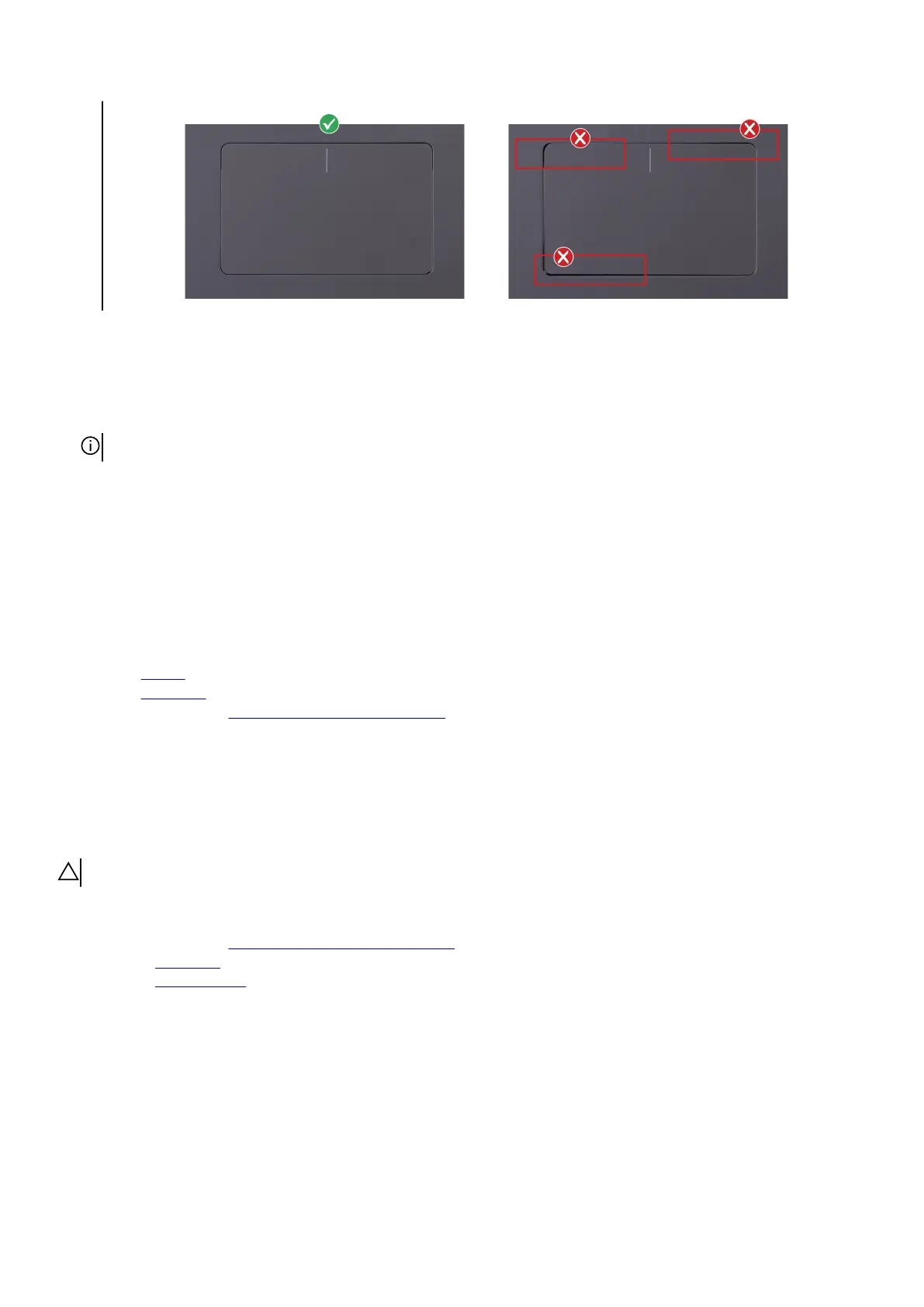

2. Replace the nine screws (M1.6x1.8) that secure the touchpad to the palm-rest and keyboard assembly.
3. Adhere the tape that secures the touchpad to the palm-rest and keyboard assembly.
4. Fold down the touchpad cable.
5. Slide the touchpad cable into its connector on the touchpad and close the latch to secure the cable.
6. Slide the touchpad-light cable into its connector on the touchpad and close the latch to secure the cable.
NOTE: Your computer may be shipped with a touchpad-light cable depending on the configuration you have ordered.
7. Fold down the keyboard cable.
8. Slide the keyboard cable into the connector on the keyboard-controller board and close the latch to secure the cable.
9. Fold down the keyboard-controller board cable.
10.Slide the keyboard-controller board cable into the connector on the keyboard-controller board and close the latch to secure the
cable.
11. Align and adhere the Mylar on the keyboard-controller board.
12. Align and place the speakers onto the palm-rest and keyboard assembly.
Next steps
1. Install the
battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Headset port
Removing the headset port
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the rear I/O-cover.
About this task
The following images indicate the location of the headset port and provide a visual representation of the removal procedure.
