Steps

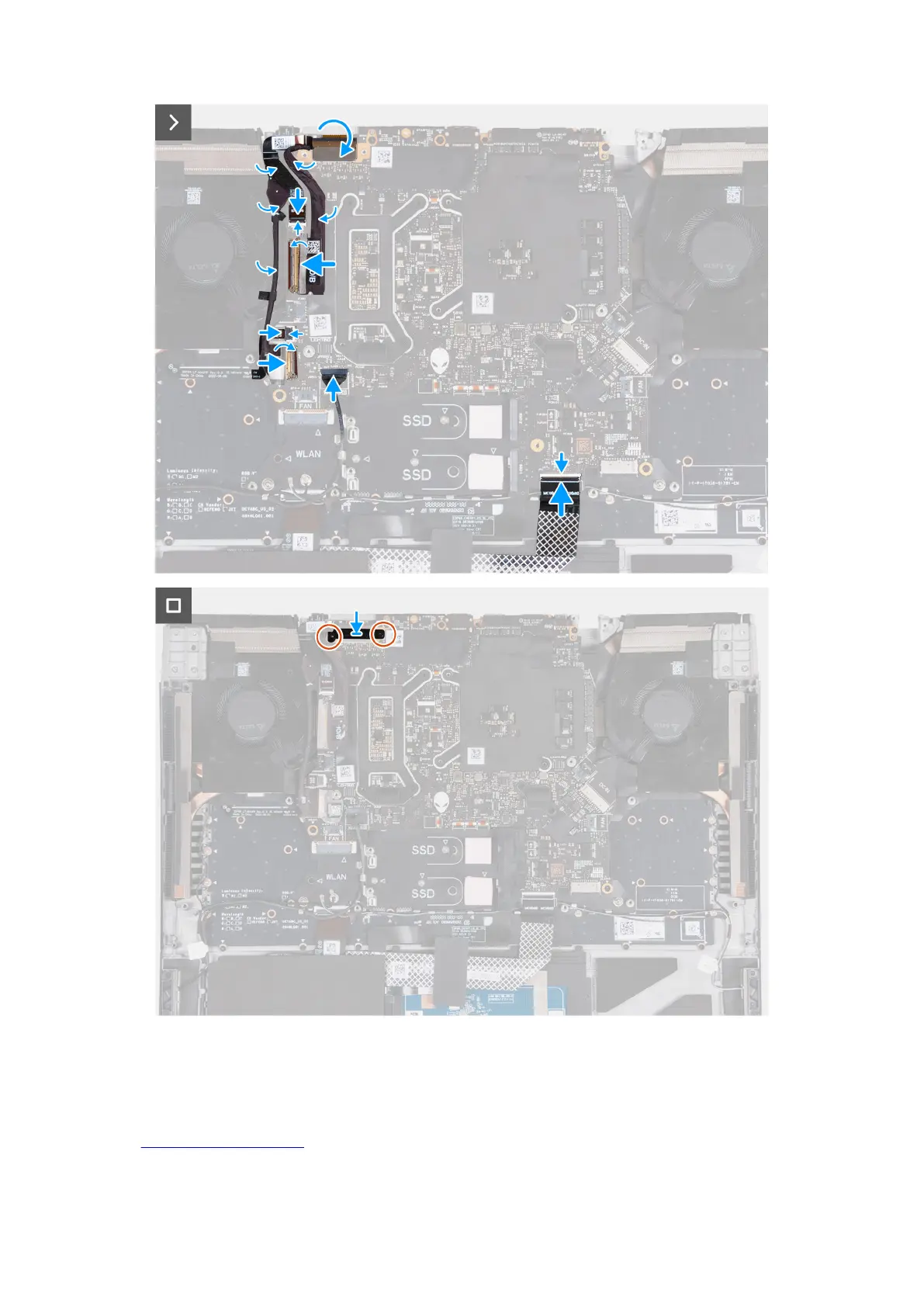

1. Turn the system board over.

2. Align the screw hole on the USB Type-C bracket with the screw hole on the system board.

3. Replace the screw (M2x3) that secures the USB Type-C bracket to the system board.

4. Install the

fan and heat-sink assembly.

5. Turn the system-board assembly over and place the system-board assembly on the palm-rest and keyboard assembly.
