Steps
1. Connect the battery cable to the system board.

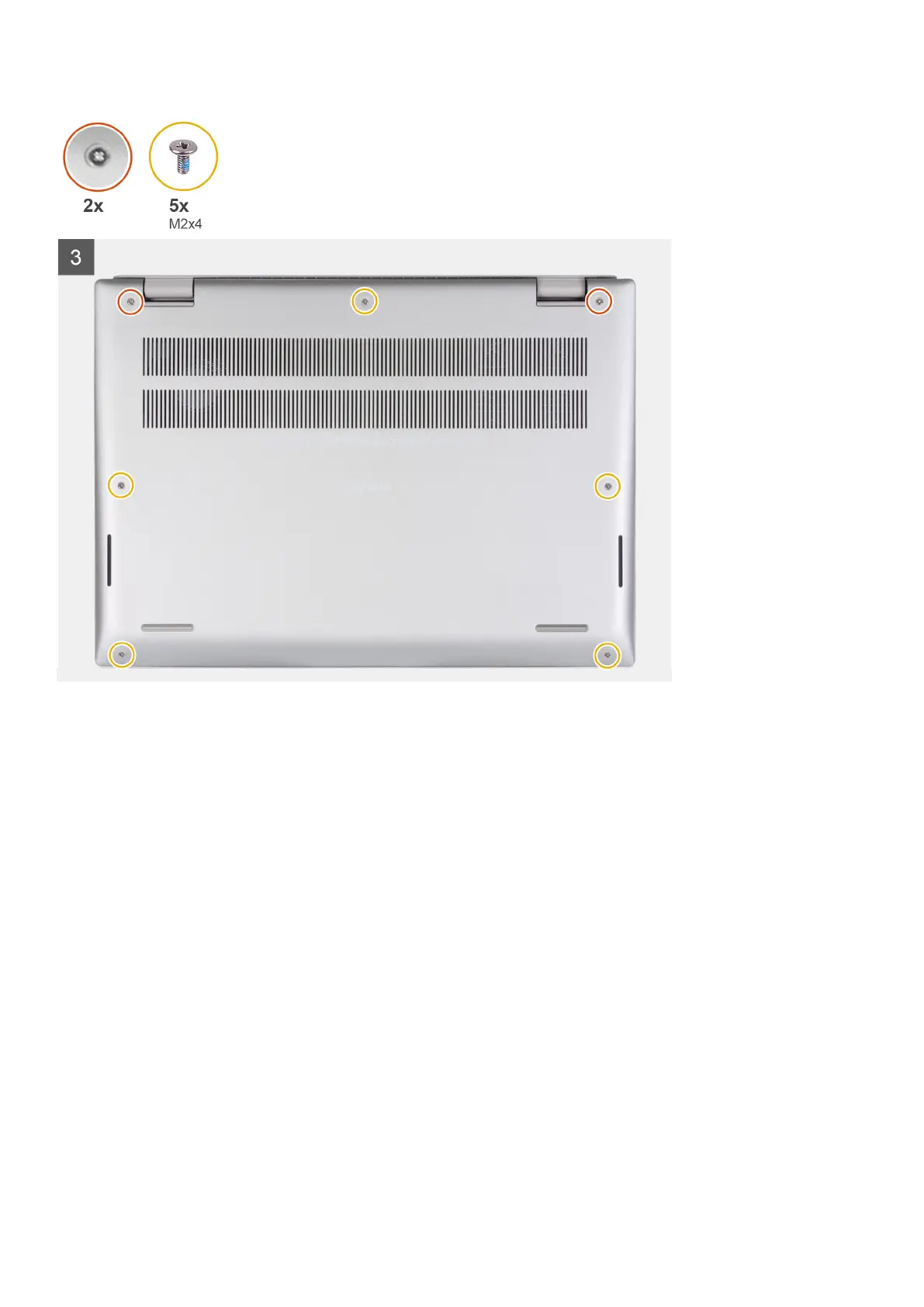

2. Place and snap the base cover into place on the palm-rest assembly.
3. Tighten the two captive screws on the base cover.
4. Replace the five screws (M2x4) that secure the base cover to the palm-rest assembly.
Next steps
1. Follow the procedure in After working inside your computer.
Battery cable
Removing the battery cable
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following image(s) indicate the location of the battery cable and provides a visual representation of the removal procedure.
Removing and installing components
