Steps
1. Peel the tape that secures the battery cable to the battery.
2. Disconnect the battery cable from the system board.
3. Remove the battery cable from the routing guides on the battery.
4. Disconnect the battery cable from the battery.
5. Lift the battery cable off the battery.
Installing the battery cable
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

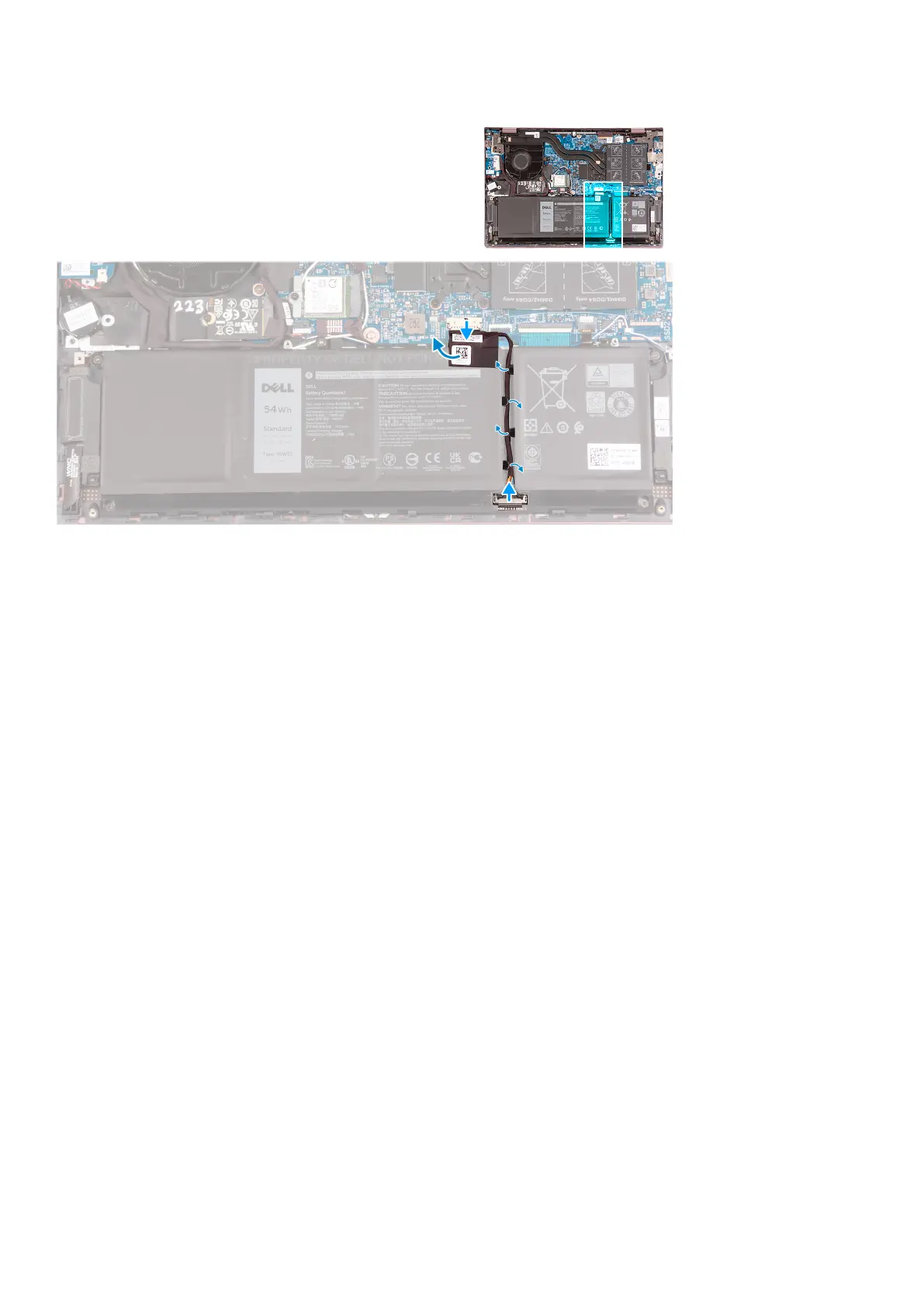

The following image(s) indicate the location of the battery cable and provides a visual representation of the installation
procedure.
18
Removing and installing components
