Steps

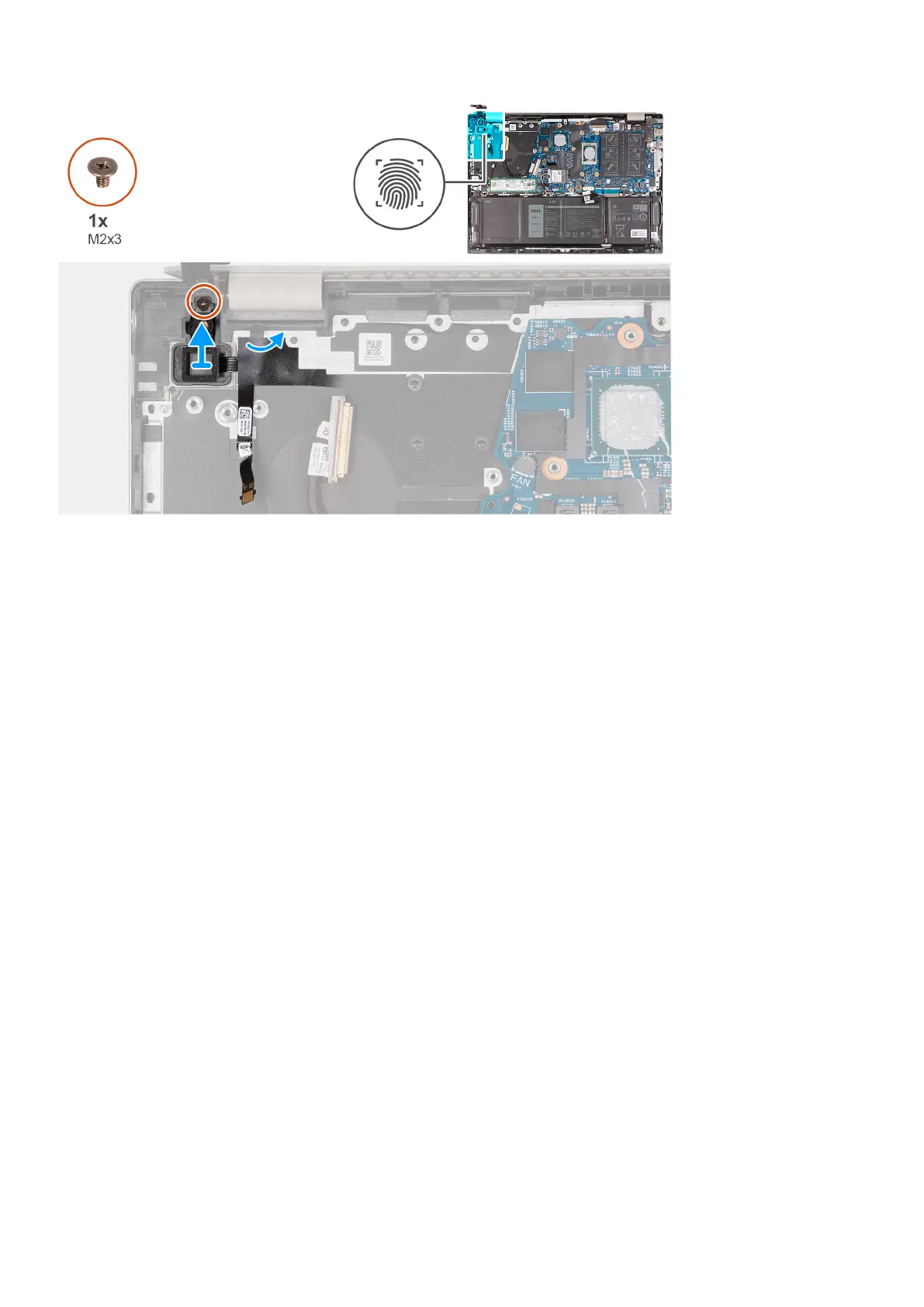

1. Remove the screw (M2x3) that secures the power button with optional fingerprint reader to the palm-rest and keyboard
assembly.
2. Lift the power button with optional fingerprint reader off the palm-rest and keyboard assembly.
Installing the power button with optional fingerprint reader
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the power button with optional fingerprint reader and provides a visual
representation of the installation procedure.
Removing and installing components
51
