If you are replacing the M.2 2230 solid-state drive with a new M.2 2230 solid-state drive, use the existing mounting
bracket to install the latter.
● M.2 2280 solid-state drive
If you are replacing the M.2 2280 solid-state drive (shipped with the computer) with an M.2 2230 solid-state drive, a
mounting bracket for the M.2 2230 solid-state drive is required. Please contact Dell support to purchase the mounting
bracket for the M.2 2230 solid-state drive.

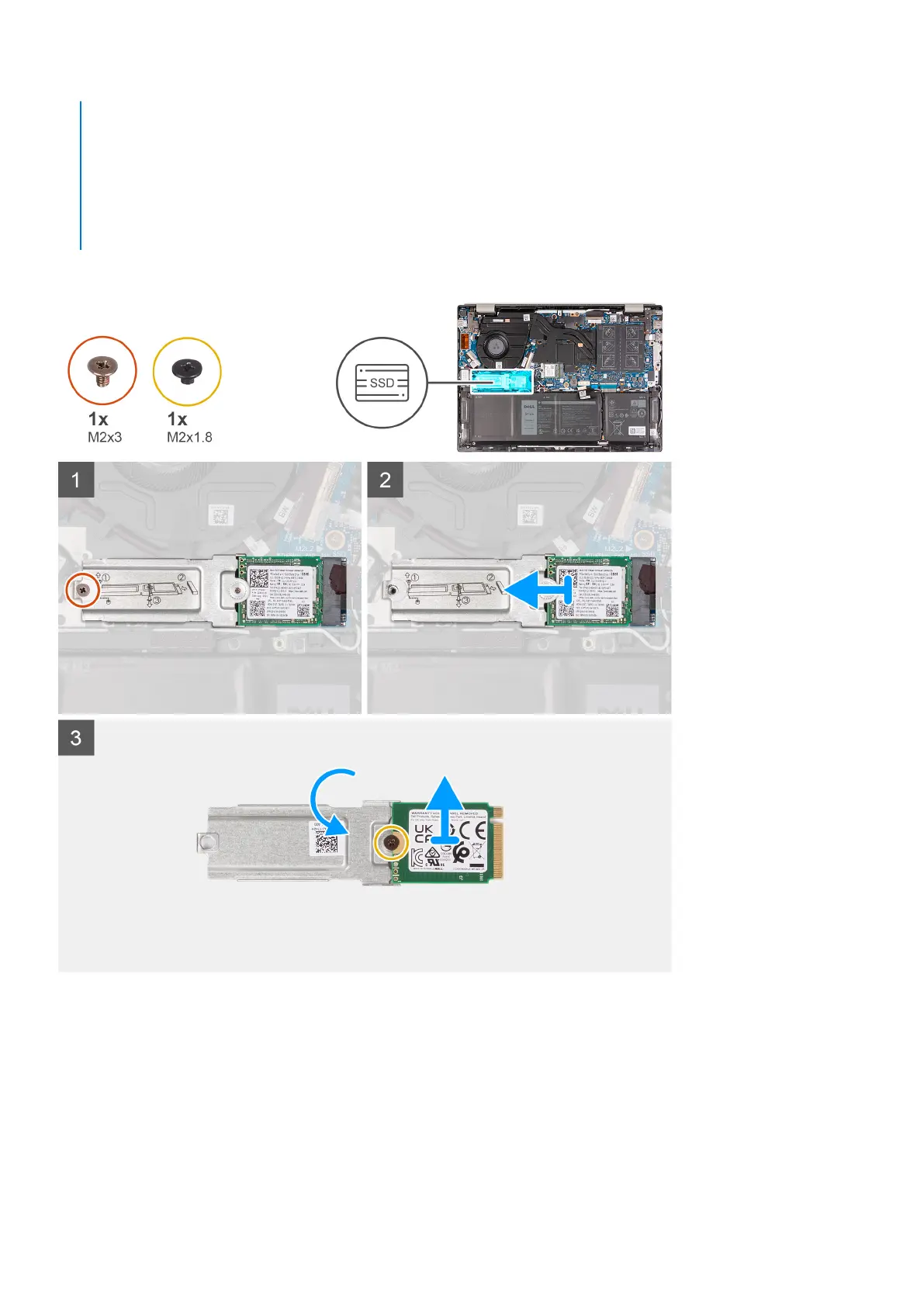

The following image(s) indicate the location of the M.2 2230 solid-state drive and provides a visual representation of the
removal procedure.
Steps
1. Remove the screw (M2x3) that secures the M.2 2230 solid-state drive bracket to the system board.
2. Slide and lift the M.2 2230 solid-state drive bracket off the system board.
3. Turn over the M.2 2230 solid-state drive bracket.
4. Loosen the screw (M2x1.8) that secures the M.2 2230 solid-state drive to the M.2 2230 solid-state drive bracket.
5. Remove the M.2 2230 solid-state drive from the M.2 2230 solid-state drive bracket.
