Dell P185G - Removing the System Fan for Computers Shipped with an Aluminum Chassis

About this task

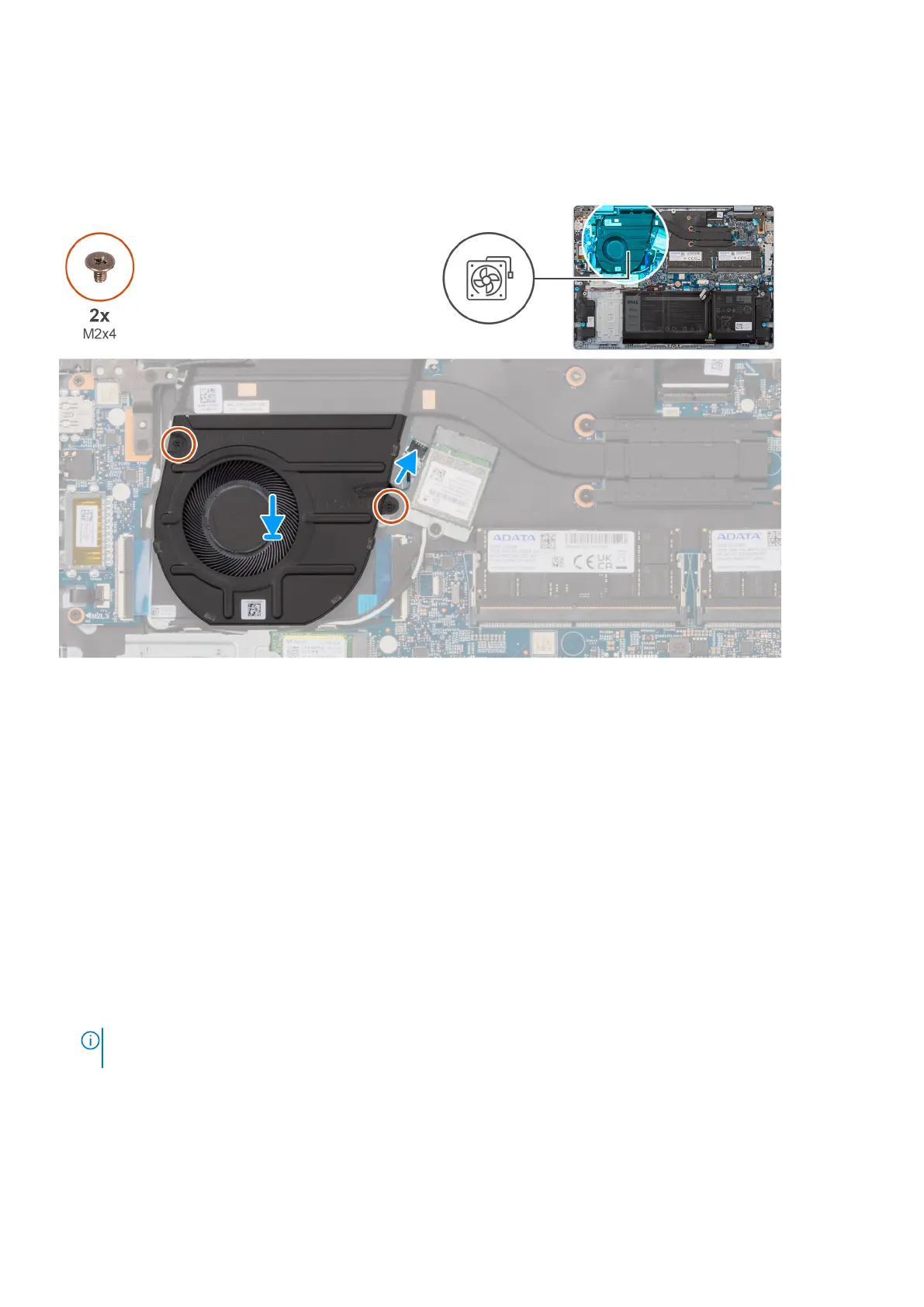

The following image indicates the location of the system fan and provides a visual representation of the installation procedure.
Figure 33. Installing the fan
Steps
1. Place the fan on the palm-rest and keyboard assembly.
2. Align the screw holes on the fan with the screw holes on the palm-rest and keyboard assembly.
3. Replace the two screws (M2x4) that secure the fan to the palm-rest and keyboard assembly.
4. Connect the fan cable (FN1) to the system board.
Next steps
1. Install the base cover for computers shipped with a plastic chassis.
2. Follow the procedure in After working inside your computer.
Removing the system fan for computers shipped with an aluminum
chassis
Prerequisites
1. Follow the procedure in Before working inside your computer.
NOTE:
Ensure that your computer is in Service Mode. For more information, see step 6 in, Before working inside your
computer.
2. Remove the base cover for computers shipped with an aluminum chassis.
About this task
The following image indicates the location of the system fan and provides a visual representation of the removal procedure.
