2. Lift the latch and disconnect the touchpad cable from the connector on the touchpad.
3. Lift the touchpad cable off the palm-rest and keyboard assembly.
4. Remove the one screw (M2x2.5) and the four screws (M2x2) that secure the touchpad to the palm-rest and keyboard
assembly.
5. Lift the touchpad off the palm-rest and keyboard assembly.
Installing the touchpad for computers shipped with an aluminum
chassis
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

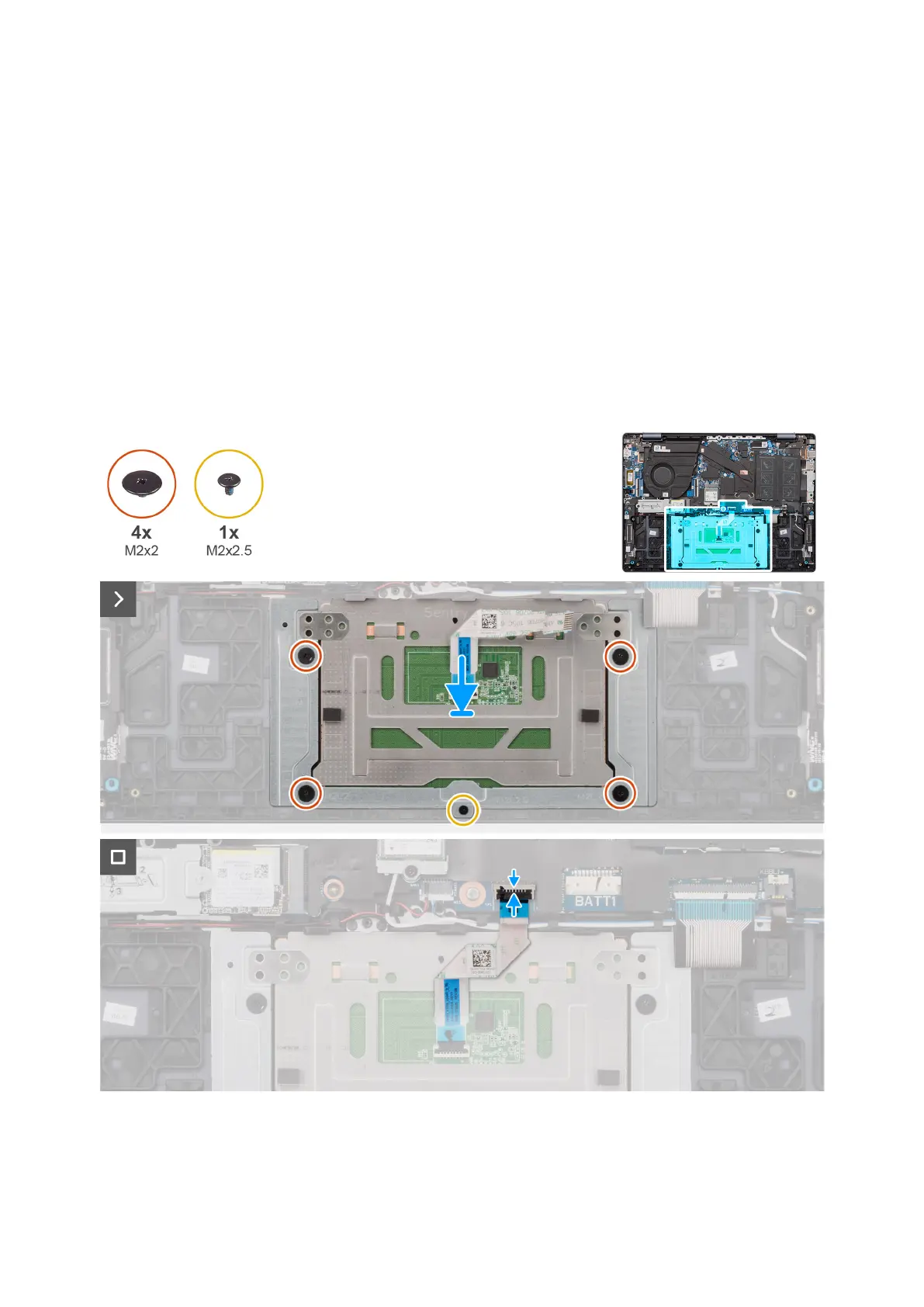

The following image indicates the location of the touchpad and provides a visual representation of the installation procedure.
Figure 63. Installing the touchpad
Steps
1. Place the touchpad into its slot on the palm-rest and keyboard assembly.
