Installing the display cable for computers shipped with a plastic
chassis
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

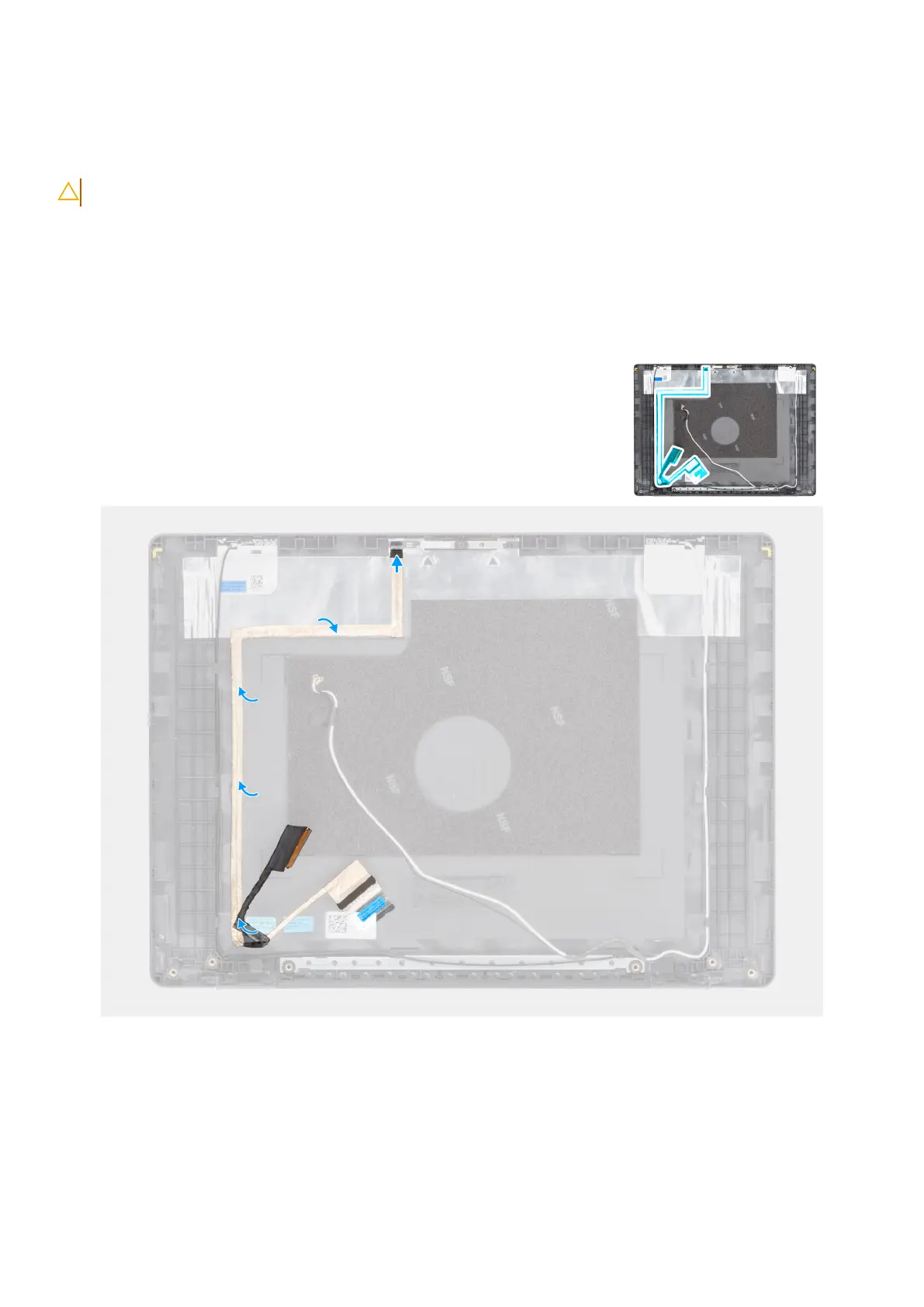

The following image indicates the location of the display cable and provides a visual representation of the installation procedure.
Figure 83. Installing the display cable
Steps
1. Adhere the display eDP cable to the display back-cover and antenna assembly.
2. Connect the display eDP cable to the connector on the camera module.
