NOTE: The following steps are applicable only if you want to further remove any other component from your computer.

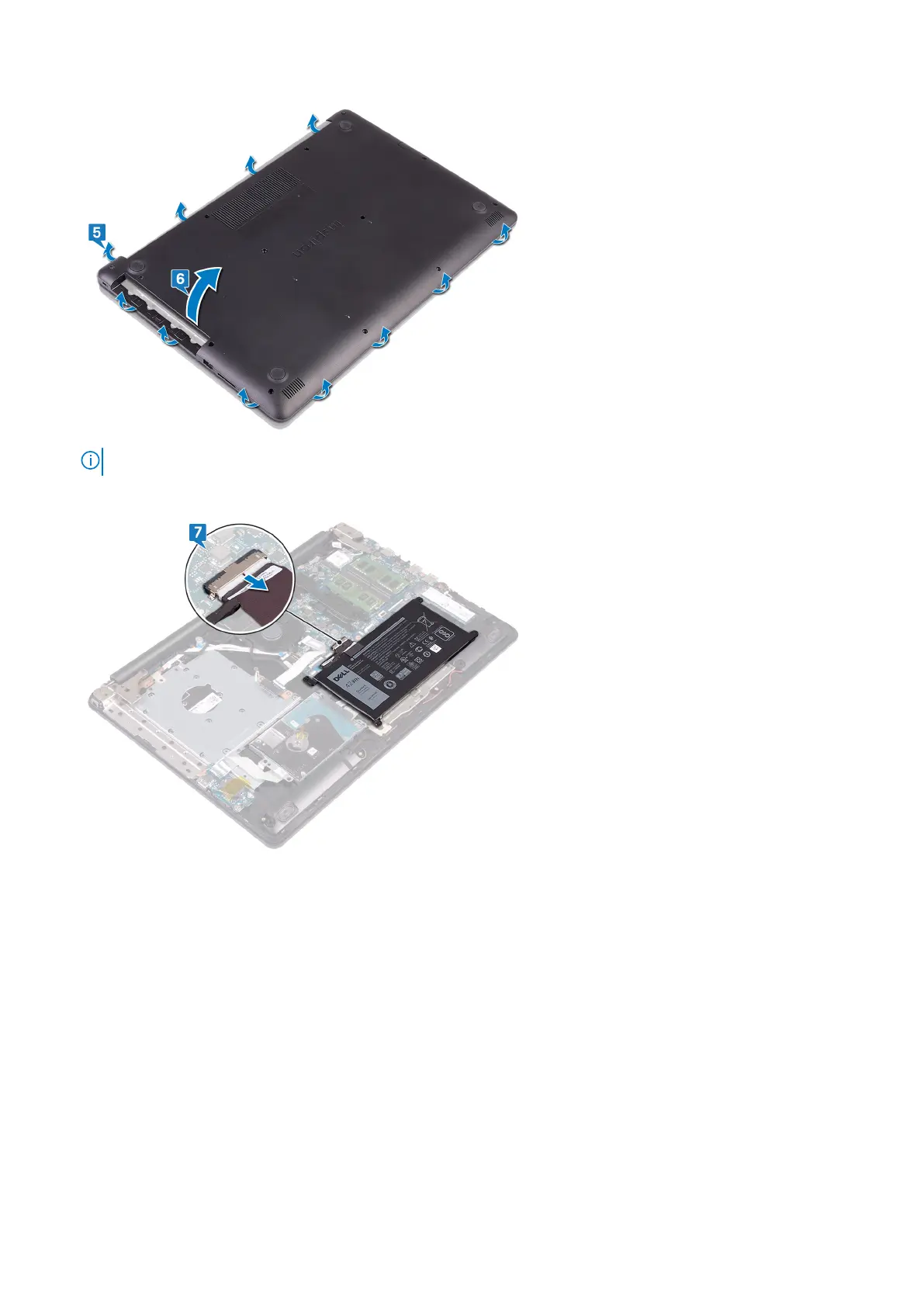

7. Disconnect the battery cable from the system board.

8. Press and hold the power button for 5 seconds to ground the computer and drain the flea power.

Removing the base cover

Main Page
