Removing the display cable
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working
inside your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Prerequisites
1. Remove the optical drive.
2. Remove the base cover.
3. Remove the wireless card.
4. Remove the display assembly.
5. Remove the display bezel.
6. Remove the display panel.
7. Remove the display hinges.
Procedure

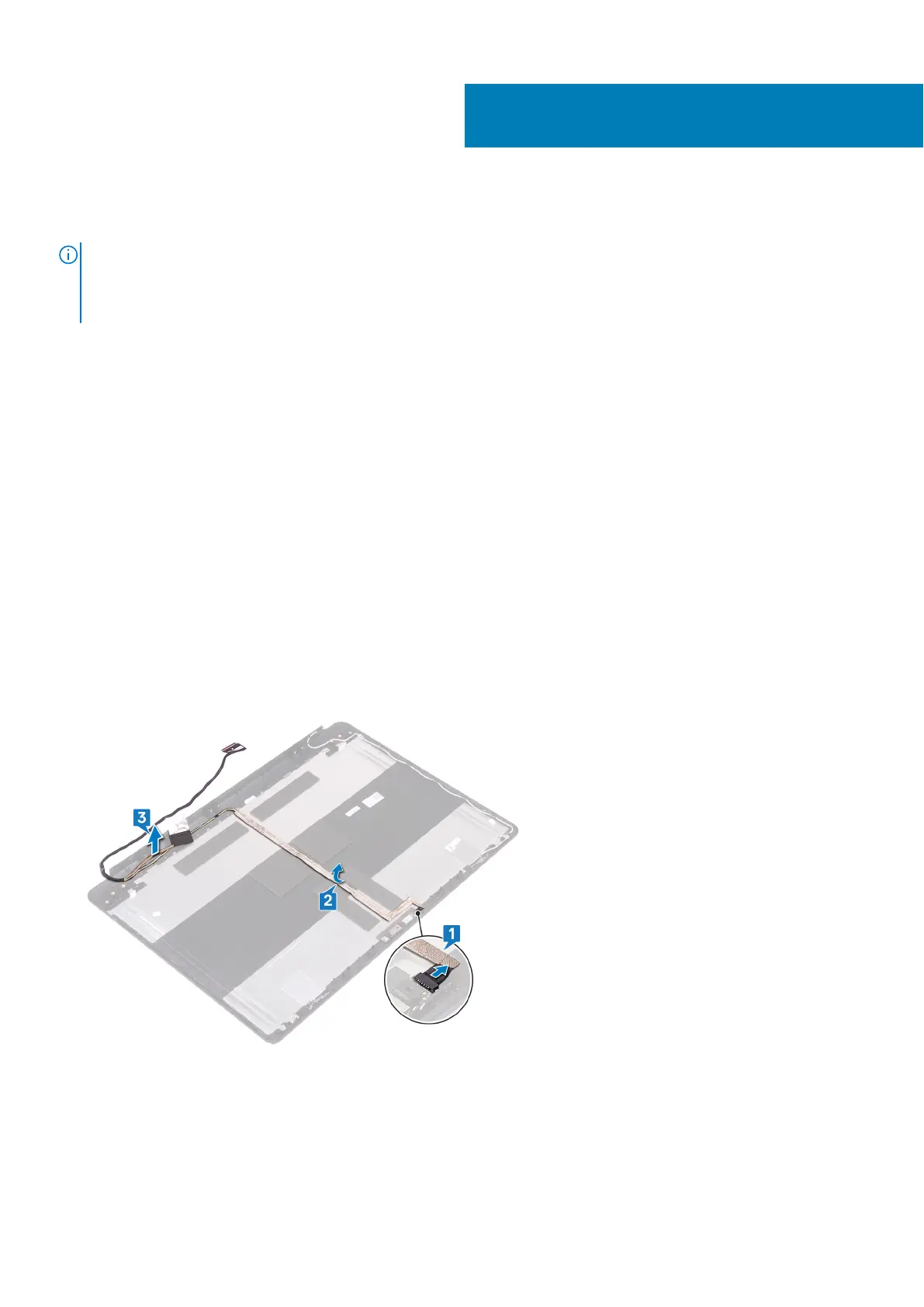

1. Disconnect the camera cable from the camera module.
2. Note the display cable routing and remove the cable from the routing guides on the display back-cover and antenna
assembly.
3. Remove the display cable from the display back-cover and antenna assembly.
54
Removing the display cable 99
