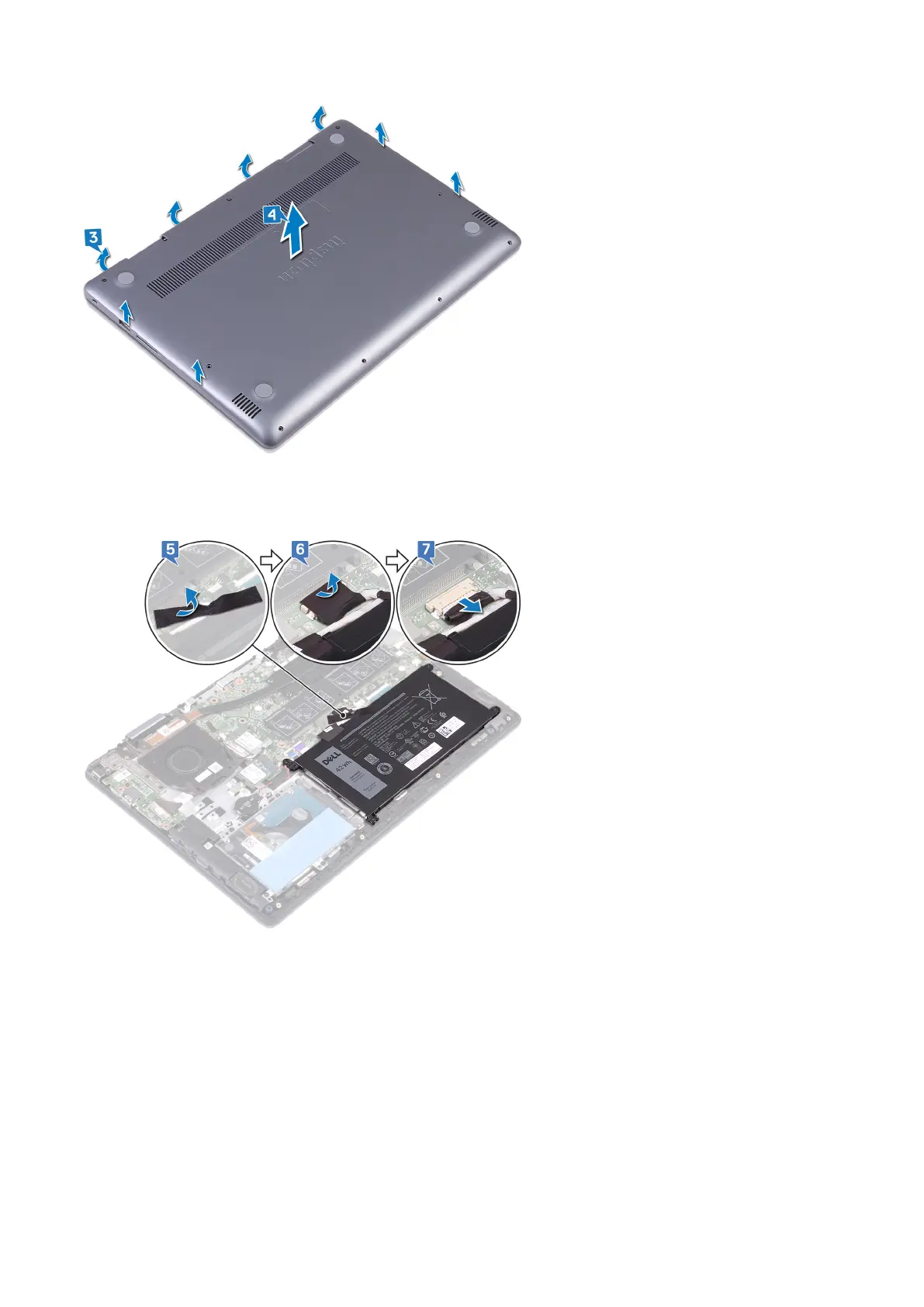

5. Peel off the tape that secures the battery cable to the battery.

6. Peel the tape that secures the battery cable to the battery-cable connector.

7. Disconnect the battery cable from the system board.

8. Turn the computer over, open the display, then press and hold the power button for 15 seconds to ground the system board.

Removing the base cover
