Replacing the display hinges
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow
the steps in Before working inside your computer. After working inside your computer, follow the instructions in After
working inside your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.

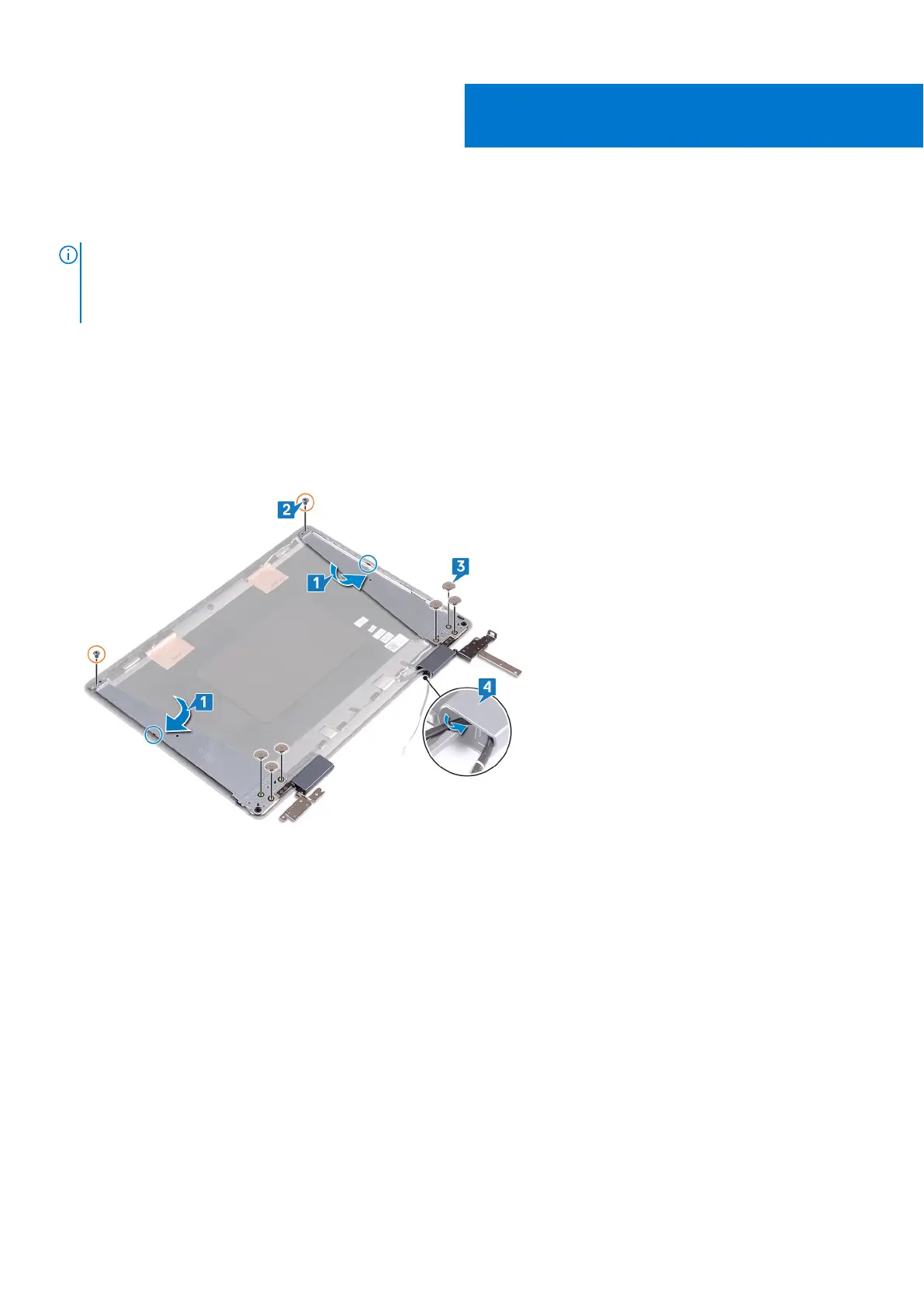

Procedure
1. Align the screw holes on the display hinges with the screw holes on the display back-cover and antenna assembly.
2. Replace the two screws (M2x3) that secure the display hinges to the display back-cover and antenna assembly.
3. Replace the six screws (M2.5x2.5) that secure the display hinges to the display back-cover and antenna assembly.
4. Route the antenna cables through the routing guide on the display hinge and secure it in place.
Post-requisites
1. Follow the procedure from step 3 to step 5 in "Replacing the display back-cover and antenna assembly".
2. Replace the display assembly.
3. Replace the wireless card.
4. Replace the battery.
5. Replace the base cover.
35
Replacing the display hinges 63
